Manufacturer Part Number: | 1721590503 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Card Edge Connectors - Housings |
Available Quantity: | 9909 Pieces |
Unit Price: | Quote by Email |

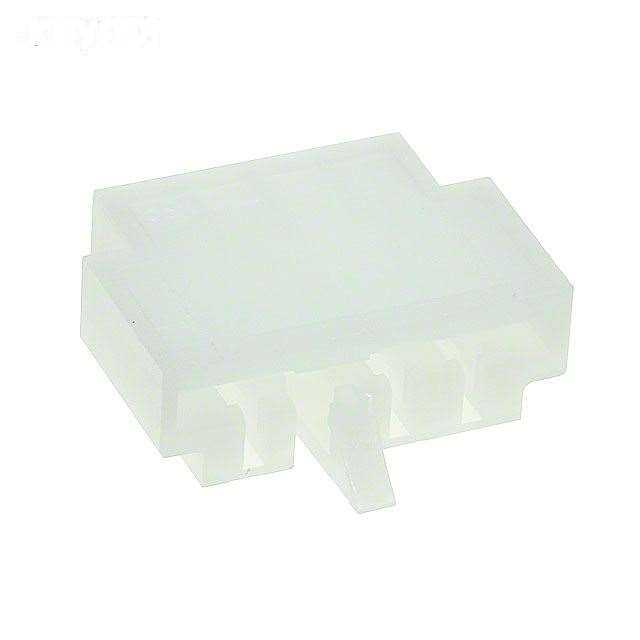

Description: | 3 Position Card Edge Connector Housing White 0.156" (3.96mm) Free Hanging (In-Line) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 1721590503 Datasheet |
Internal Part Number | 898-1721590503 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | V2 6/6 Nylon Resin Additional Supplier 05/Nov/2014 | |
Online Catalog | EdgeMate™ 172160 Series | |
Category | Connectors, Interconnects | |
Family | Card Edge Connectors - Housings | |
Manufacturer | Molex, LLC | |
Series | EDGEMATE™ 172159 | |
Packaging | Bulk | |
Part Status | Active | |
Card Type | Non Specified - Single Edge | |
Number of Positions | 3 | |
Card Thickness | 0.062" (1.57mm) | |
Pitch | 0.156" (3.96mm) | |
Features | Latch Lock | |
Mounting Type | Free Hanging (In-Line) | |
Color | White | |
Flange Feature | - | |
Material - Insulation | Polyamide (PA), Nylon | |
Note | Contacts Not Provided | |
Material Flammability Rating | UL94 V-2 | |
Operating Temperature | 0°C ~ 75°C | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 1721590503 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
1721590503 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 1721590503 is new and unused, you can buy 1721590503 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1721590503.
