172118

172118
Manufacturer Part Number:172118
Manufacturer:
Product Category:Coaxial Connectors (RF)
Available Quantity:9326 Pieces
Unit Price:Quote by Email

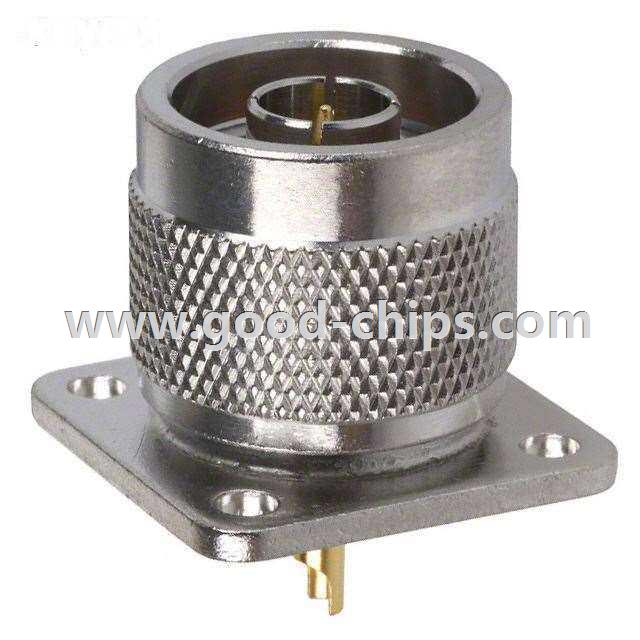

Description:N Type Connector Receptacle, Male Pin 50 Ohm Panel Mount, Square Flange Solder Cup
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 172118 Datasheet
172118´s Parameters
Internal Part Number898-172118
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
3D Model172118.stp
Online Catalog N Type
CategoryConnectors, Interconnects
FamilyCoaxial Connectors (RF)
ManufacturerAmphenol-RF Division
Series-
PackagingBulk
Part StatusActive
Connector StyleN Type
Connector TypeReceptacle, Male Pin
Contact TerminationSolder Cup
Shield TerminationSolder
Impedance50 Ohm
Mounting TypePanel Mount, Square Flange
Cable Group-
Fastening TypeThreaded
Frequency - Max11GHz
Features-
Housing ColorSilver
Ingress Protection-
Body MaterialBrass
Body FinishWhite Bronze
Center Contact MaterialBrass
Center Contact PlatingGold
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Voltage Rating1500V
Operating Temperature-65°C ~ 165°C
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement Part172118
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

172118 is in stock for immediate shipping now. We are the distributor of Amphenol-RF Division all series components. The condition of 172118 is new and unused, you can buy 172118 Amphenol-RF Division with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 172118.
