| Manufacturer Part Number: | 1720641002 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 10229 Pieces |
| Unit Price: | Quote by Email |

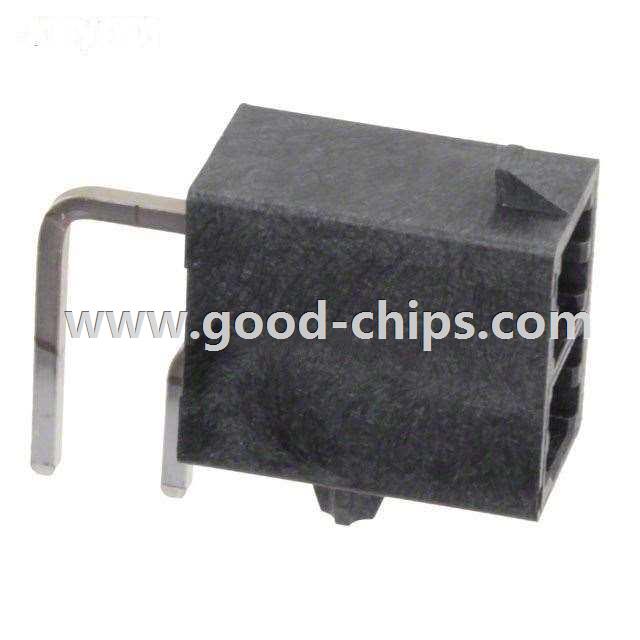

| Description: | 2 Positions Header, Shrouded Connector Through Hole, Right Angle Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1720641002 Datasheet |
| Internal Part Number | 898-1720641002 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Molex - Mega-Fit® Power Connectors | |
| Featured Product | Power Connectors | |
| 3D Model | 172064-1002 .pdf | |
| PCN Design/Specification | 076825000y,172064y00y 11/Apr/2016 | |
| PCN Assembly/Origin | Resin Supplier 21/Oct/2015 | |
| Online Catalog | Mega-Fit® Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Molex, LLC | |
| Series | Mega-Fit® | |
| Packaging | Tray | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 2 | |
| Number of Positions Loaded | All | |
| Pitch | - | |
| Number of Rows | 2 | |
| Row Spacing | 0.224" (5.70mm) | |
| Contact Mating Length | - | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | Locking Ramp | |
| Features | Board Guide | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Color | Black | |
| Standard Package | 2,016 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1720641002 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1720641002 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 1720641002 is new and unused, you can buy 1720641002 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1720641002.
