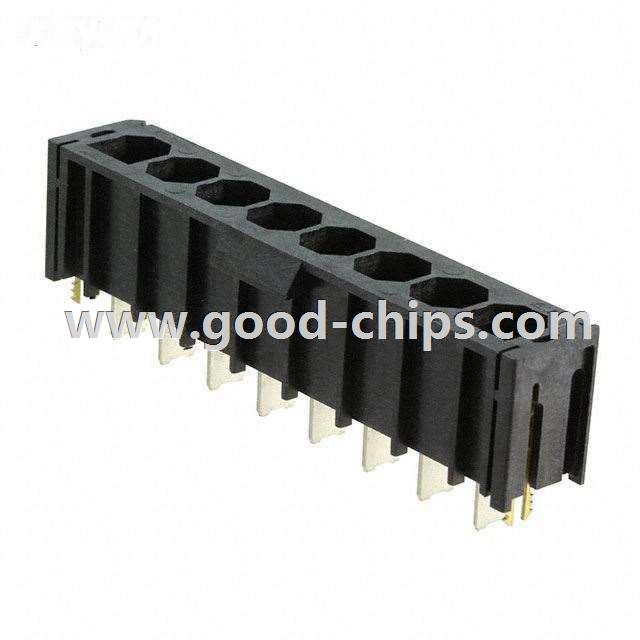

| Manufacturer Part Number: | 1720420808 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Blade Type Power Connectors |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN HDR 8POS 7.50MM PCB SLDR |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1720420808 Datasheet |
| Internal Part Number | 898-1720420808 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 1720430808 Cert of Compliance | |
| Featured Product | Power Connectors Super Sabre™ Connector System | |
| Category | Connectors, Interconnects | |
| Family | Blade Type Power Connectors | |
| Manufacturer | Molex, LLC | |
| Series | Super Sabre™ 172042 | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Connector Style | - | |
| Connector Type | Header, Male Blades | |
| Number of Positions | 8 | |
| Pitch | 0.295" (7.50mm) | |
| Mounting Type | Through Hole | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Termination | Solder | |
| Wire Gauge | - | |
| Features | Board Lock | |
| Color | Black | |
| Fastening Type | Locking Ramp | |
| Contact Material | Copper | |
| Contact Finish | Silver | |
| Contact Finish Thickness | 100µin (2.54µm) | |
| Voltage Rating | 600V | |
| Current Rating | 30A | |
| Material - Insulation | Liquid Crystal Polymer (LCP), Glass Filled | |
| Operating Temperature | -40°C ~ 125°C | |
| Standard Package | 140 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1720420808 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1720420808 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 1720420808 is new and unused, you can buy 1720420808 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1720420808.
