1718143004

1718143004

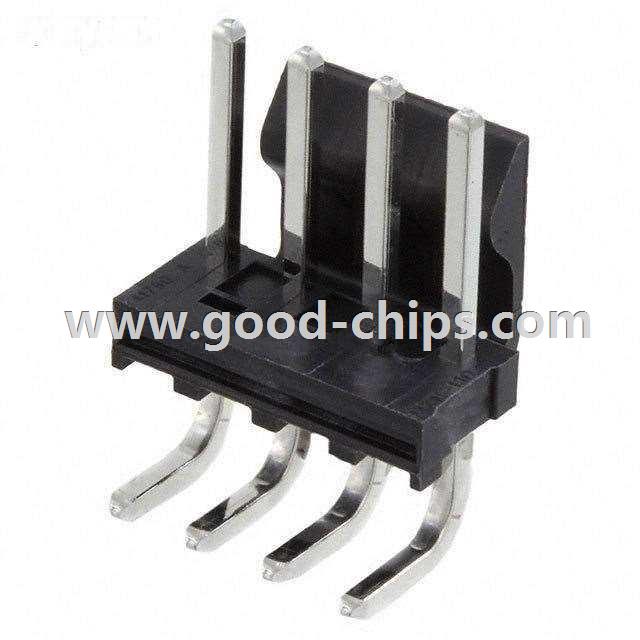

Manufacturer Part Number:1718143004
Manufacturer:
Product Category:Rectangular Connectors - Headers, Male Pins
Available Quantity:9730 Pieces
Unit Price:Quote by Email
Description:4 Positions Header, Unshrouded Connector 0.156" (3.96mm) Through Hole, Right Angle Tin
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 1718143004 Datasheet
1718143004´s Parameters
Internal Part Number898-1718143004
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Featured ProductKK® Interconnect Solutions
Power Connectors
PCN Design/SpecificationKKRPC ProductsMarking 10/May/2016
PCN OtherKK 396 Cosmetic Deviation 07/Jul/2014
Online Catalog KK® 171814 Series
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
ManufacturerMolex, LLC
SeriesKK® 171814
PackagingTape & Reel (TR)
Part StatusActive
Contact TypeMale Pin
Connector TypeHeader, Unshrouded
Number of Positions4
Number of Positions LoadedAll
Pitch0.156" (3.96mm)
Number of Rows1
Row Spacing-
Contact Mating Length0.446" (11.33mm)
Mounting TypeThrough Hole, Right Angle
TerminationSolder
Fastening TypeFriction Lock
Features-
Contact FinishTin
Contact Finish Thickness60µin (1.52µm)
ColorBlack
Standard Package 120
Weight0.001 KG
ApplicationEmail for details
Replacement Part1718143004
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

1718143004 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 1718143004 is new and unused, you can buy 1718143004 Molex, LLC with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 1718143004.
