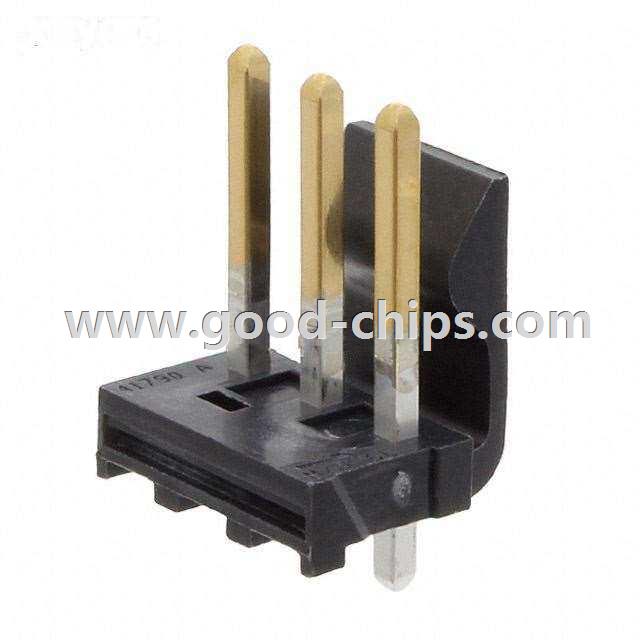

1718131003

1718131003
Manufacturer Part Number:1718131003
Manufacturer:
Product Category:Rectangular Connectors - Headers, Male Pins
Available Quantity:11288 Pieces
Unit Price:Quote by Email
Description:3 Positions Header, Unshrouded Connector 0.156" (3.96mm) Through Hole Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 1718131003 Datasheet
1718131003´s Parameters
Internal Part Number898-1718131003
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Featured ProductKK® Interconnect Solutions
Power Connectors
PCN Design/SpecificationKKRPC ProductsMarking 10/May/2016
PCN OtherKK 396 Cosmetic Deviation 07/Jul/2014
Online Catalog KK® 171813 Series
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
ManufacturerMolex, LLC
SeriesKK® 171813
PackagingBulk
Part StatusActive
Contact TypeMale Pin
Connector TypeHeader, Unshrouded
Number of Positions3
Number of Positions LoadedAll
Pitch0.156" (3.96mm)
Number of Rows1
Row Spacing-
Contact Mating Length0.448" (11.38mm)
Mounting TypeThrough Hole
TerminationSolder
Fastening TypeFriction Lock
Features-
Contact FinishGold
Contact Finish Thickness15µin (0.38µm)
ColorBlack
Standard Package 2,700
Weight0.001 KG
ApplicationEmail for details
Replacement Part1718131003
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

1718131003 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 1718131003 is new and unused, you can buy 1718131003 Molex, LLC with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 1718131003.
