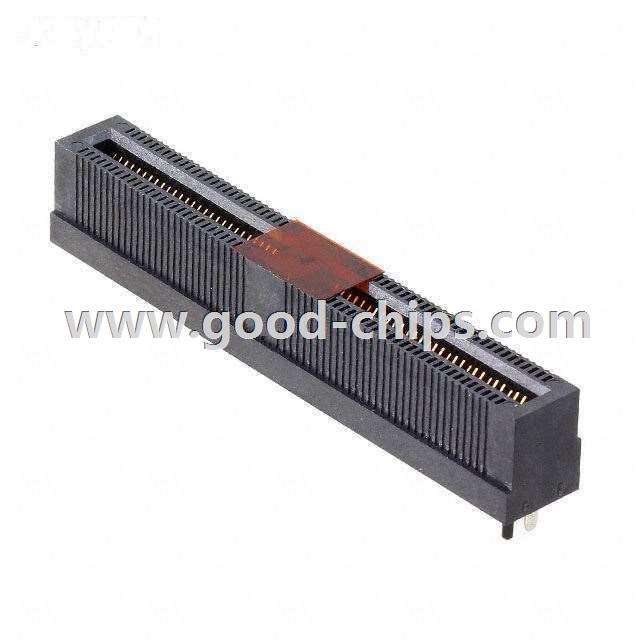

Manufacturer Part Number: | 1717742118 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Card Edge Connectors - Edgeboard Connectors |
Available Quantity: | 9504 Pieces |
Unit Price: | Quote by Email |
Description: | EDGELINE 25GB 118CKTS 0.062" |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 1717742118 Datasheet |
Internal Part Number | 898-1717742118 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Molex EdgeLine® Connectors | |
PCN Design/Specification | 171774 Series Molding Issue 14/Nov/2014 | |
Online Catalog | EdgeLine® 171774 Series | |
Category | Connectors, Interconnects | |
Family | Card Edge Connectors - Edgeboard Connectors | |
Manufacturer | Molex Connector Corporation | |
Series | EdgeLine® 171774 | |
Packaging | Bulk | |
Part Status | Active | |
Card Type | - | |
Gender | Female | |
Number of Positions/Bay/Row | - | |
Number of Positions | 118 | |
Card Thickness | 0.063" (1.60mm) | |
Number of Rows | 2 | |
Pitch | 0.031" (0.80mm) | |
Features | Board Guide, Board Lock | |
Mounting Type | Through Hole | |
Termination | Solder | |
Contact Material | Copper Alloy | |
Contact Finish | Gold | |
Contact Finish Thickness | 30µin (0.76µm) | |
Contact Type | - | |
Color | Black | |
Flange Feature | - | |
Operating Temperature | -40°C ~ 105°C | |
Material - Insulation | Thermoplastic, Glass Filled | |
Read Out | Dual | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 1717742118 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
1717742118 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 1717742118 is new and unused, you can buy 1717742118 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1717742118.
