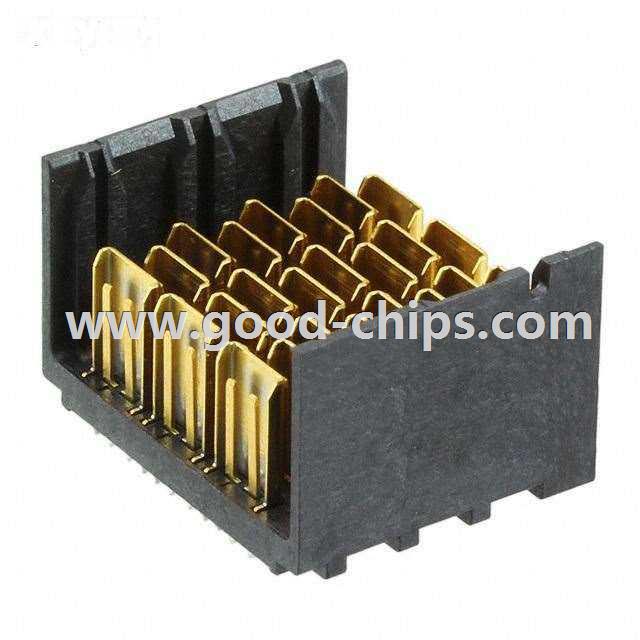

1713351807

1713351807
Manufacturer Part Number:1713351807
Manufacturer:
Product Category:Backplane Connectors - Hard Metric, Standard
Available Quantity:9438 Pieces
Unit Price:Quote by Email
Description:3PX8C BP ASSY 4.90 0.36
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 1713351807 Datasheet
1713351807´s Parameters
Internal Part Number898-1713351807
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Featured ProductImpel™ Backplane Interconnect System
PCN Design/SpecificationImpel BP Header 3,4 PR 21/Nov/2014
PCN Assembly/OriginMultiple Devices Molds 23/Jul/2015
Multiple Devices 30/Oct/2015
Online Catalog Impel™ Series
CategoryConnectors, Interconnects
FamilyBackplane Connectors - Hard Metric, Standard
ManufacturerMolex, LLC
SeriesImpel™ 171335
PackagingTray
Part StatusActive
Connector TypeHeader, Male Pins and Blades
Connector StyleImpel™
Number of Positions-
Number of Positions LoadedAll
Pitch0.075" (1.91mm)
Number of Rows9
Mounting TypeThrough Hole
TerminationPress-Fit
Connector UsageBackplane
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Current Rating-
Voltage Rating150V
Operating Temperature-40°C ~ 105°C
FeaturesShielded
Standard Package 512
Weight0.001 KG
ApplicationEmail for details
Replacement Part1713351807
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

1713351807 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 1713351807 is new and unused, you can buy 1713351807 Molex, LLC with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 1713351807.
