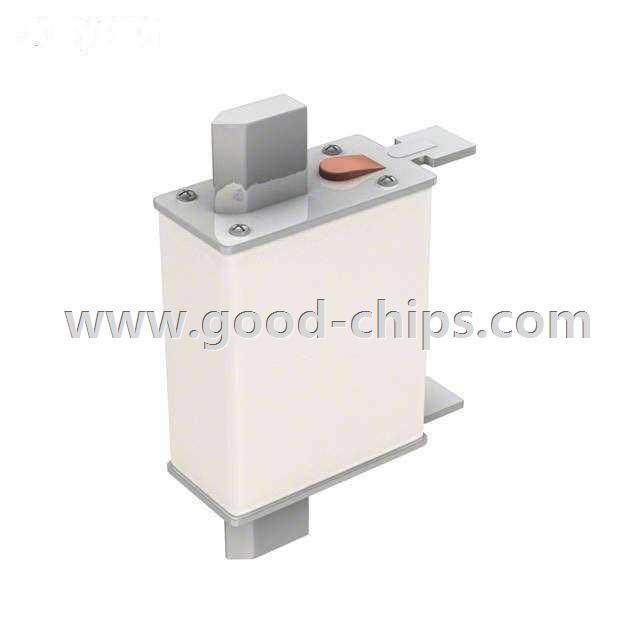

Manufacturer Part Number: | 170M1569D |
---|---|
Manufacturer: | Eaton |
Product Category: | Electrical, Specialty Fuses |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | FUSE SQ 160A 690VAC RECTANGULAR |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 170M1569D Datasheet |
Internal Part Number | 898-170M1569D | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Circuit Protection | |
Family | Electrical, Specialty Fuses | |
Manufacturer | Eaton | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Fuse Type | Square | |
Current Rating | 160A | |
Voltage Rating - AC | 690V | |
Voltage Rating - DC | - | |
Response Time | - | |
Applications | Electrical, Industrial | |
Features | Indicating | |
Class | - | |
Approvals | CE, CSA, UR | |
Operating Temperature | - | |
Breaking Capacity @ Rated Voltage | 200kA | |
Mounting Type | Holder | |
Package / Case | Rectangular, Blade | |
Size / Dimension | 2.087" L x 0.807" W x 2.047" H (53.00mm x 20.50mm x 52.00mm) | |
Melting I²t | 2300 | |
DC Cold Resistance | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 170M1569D | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
170M1569D is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of 170M1569D is new and unused, you can buy 170M1569D Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 170M1569D.
