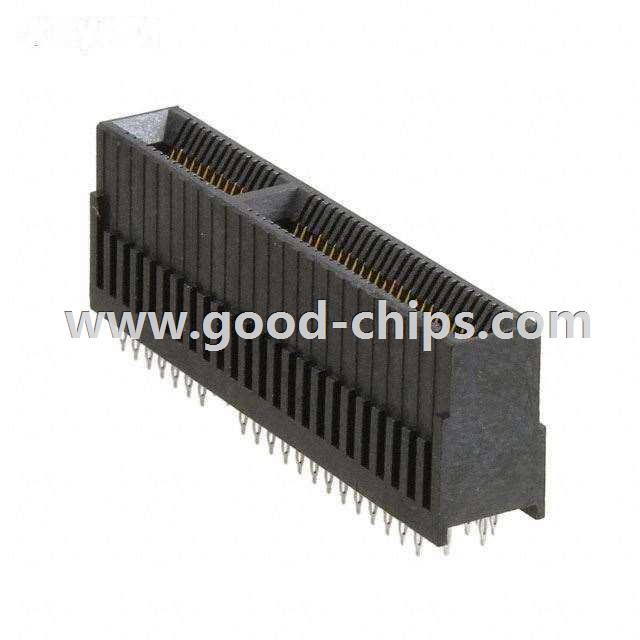

| Manufacturer Part Number: | 1706732080 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Card Edge Connectors - Edgeboard Connectors |
| Available Quantity: | 9412 Pieces |
| Unit Price: | Quote by Email |
| Description: | EDGELINE 80CKTS, 0.062"PCB |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1706732080 Datasheet |
| Internal Part Number | 898-1706732080 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 170673-2080.stp | |
| PCN Design/Specification | Multiple Devices 14/Oct/2015 Multiple Devices 12/May/2016 | |
| Online Catalog | EdgeLine® 170673 Series | |
| Category | Connectors, Interconnects | |
| Family | Card Edge Connectors - Edgeboard Connectors | |
| Manufacturer | Molex, LLC | |
| Series | EdgeLine® 170673 | |
| Packaging | Tray | |
| Part Status | Active | |
| Card Type | Non Specified - Dual Edge | |
| Gender | Female | |
| Number of Positions/Bay/Row | - | |
| Number of Positions | 80 | |
| Card Thickness | 0.063" (1.60mm) | |
| Number of Rows | 2 | |
| Pitch | 0.031" (0.80mm) | |
| Features | - | |
| Mounting Type | Through Hole | |
| Termination | Press-Fit | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Contact Type | - | |
| Color | Black | |
| Flange Feature | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Material - Insulation | Thermoplastic, Glass Filled | |
| Read Out | Dual | |
| Standard Package | 432 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1706732080 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1706732080 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 1706732080 is new and unused, you can buy 1706732080 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1706732080.
