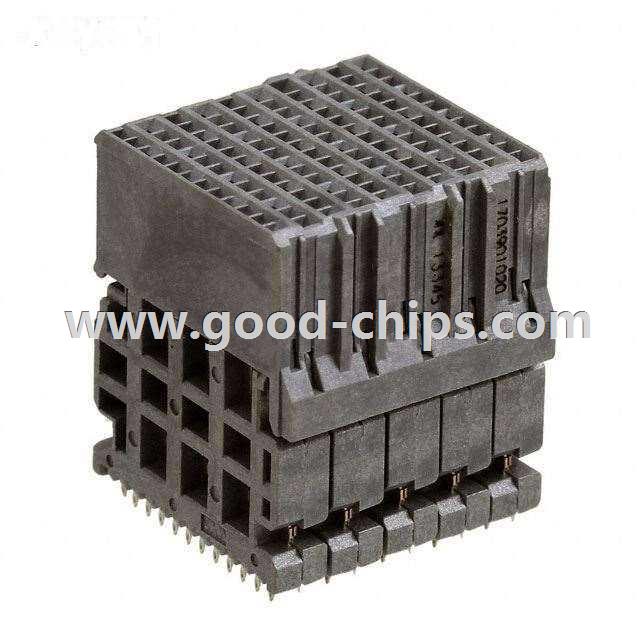

| Manufacturer Part Number: | 1704151118 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Backplane Connectors - Specialized |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IMPACT MEZZ 3X10 OPEN SN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1704151118 Datasheet |
| Internal Part Number | 898-1704151118 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Impact™ 100 Ohm Backplane Connector System | |
| 3D Model | 170415-1118 .pdf | |
| PCN Design/Specification | Various Devices Identification 20/Apr/2015 | |
| Online Catalog | Impact™ Series | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Specialized | |
| Manufacturer | Molex, LLC | |
| Series | Impact™ 170415 | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Usage | - | |
| Connector Type | Receptacle, Female Sockets | |
| Connector Style | Impact™ | |
| Number of Positions | 90 | |
| Number of Positions Loaded | All | |
| Pitch | - | |
| Number of Rows | 9 | |
| Number of Columns | 10 | |
| Mounting Type | Through Hole | |
| Termination | Press-Fit | |
| Contact Layout, Typical | 30 Differential Pairs | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Color | Black | |
| Current Rating | - | |
| Material Flammability Rating | UL94 V-0 | |
| Operating Temperature | -55°C ~ 85°C | |
| Voltage Rating | 30V | |
| Standard Package | 280 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1704151118 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1704151118 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 1704151118 is new and unused, you can buy 1704151118 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1704151118.
