17041322001

17041322001

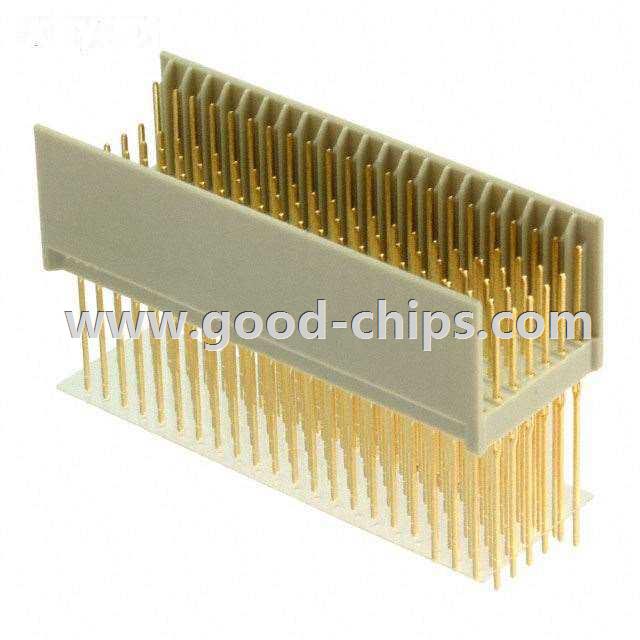

Manufacturer Part Number:17041322001
Manufacturer:
Product Category:Backplane Connectors - Hard Metric, Standard
Available Quantity:9021 Pieces
Unit Price:Quote by Email
Description:132 (110 + 22 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 17041322001 Datasheet
17041322001´s Parameters
Internal Part Number898-17041322001
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Online Catalog har-bus® HM Series
CategoryConnectors, Interconnects
FamilyBackplane Connectors - Hard Metric, Standard
ManufacturerHarting
Serieshar-bus® HM
PackagingTube
Part StatusActive
Connector TypeHeader, Male Pins
Connector StyleB 22
Number of Positions132 (110 + 22 Ground)
Number of Positions LoadedAll
Pitch0.079" (2.00mm)
Number of Rows5 + 1
Mounting TypeThrough Hole
TerminationPress-Fit
Connector UsageCompactPCI
Contact FinishGold or Gold-Palladium
Contact Finish Thickness-
Current Rating1A
Voltage Rating-
Operating Temperature-55°C ~ 125°C
FeaturesShielded
Standard Package 11
Weight0.001 KG
ApplicationEmail for details
Replacement Part17041322001
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

17041322001 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 17041322001 is new and unused, you can buy 17041322001 Harting with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 17041322001.
