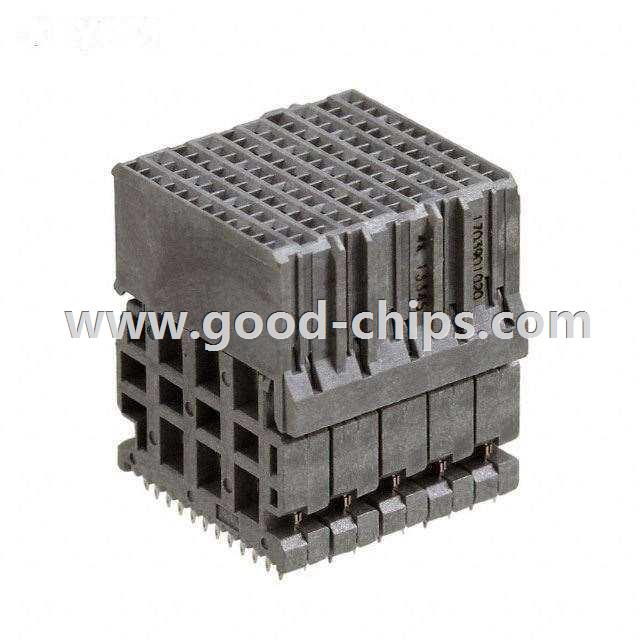

| Manufacturer Part Number: | 1703901020 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Backplane Connectors - Specialized |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN BULKHD TWISTLOCK ASSY 8CKT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1703901020 Datasheet |
| Internal Part Number | 898-1703901020 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Impact™ Plus 85 Ohm Backplane Connector System | |
| 3D Model | 170390-1020 .pdf | |
| PCN Packaging | 170390 Series 01/Apr/2014 | |
| Online Catalog | Impact™ Plus Series | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Specialized | |
| Manufacturer | Molex, LLC | |
| Series | Impact™ 170390 | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Usage | - | |
| Connector Type | Receptacle, Female Sockets | |
| Connector Style | Impact™ | |
| Number of Positions | 120 | |
| Number of Positions Loaded | All | |
| Pitch | - | |
| Number of Rows | 12 | |
| Number of Columns | 10 | |
| Mounting Type | Board Edge, Through Hole, Right Angle | |
| Termination | Press-Fit | |
| Contact Layout, Typical | 40 Differential Pairs | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Color | Gray | |
| Current Rating | - | |
| Material Flammability Rating | UL94 V-0 | |
| Operating Temperature | -55°C ~ 85°C | |
| Voltage Rating | 30V | |
| Standard Package | 280 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1703901020 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1703901020 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 1703901020 is new and unused, you can buy 1703901020 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1703901020.
