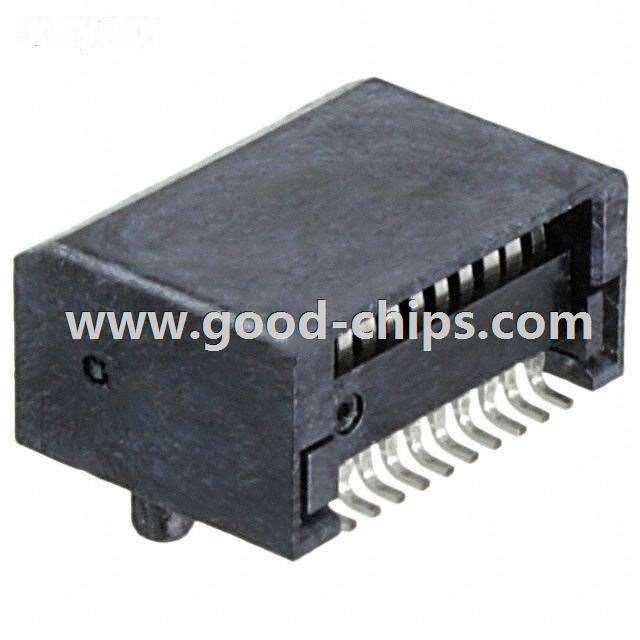

| Manufacturer Part Number: | 1703820001 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Pluggable Connectors |
| Available Quantity: | 11105 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN ZSFP+ 20CKT .38 AU CONTACT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1703820001 Datasheet |
| Internal Part Number | 898-1703820001 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | 170382 S-Parameters | |
| 3D Model | 170382-0001.stp 170382-0001.igs 170382-0001.prt | |
| PCN Design/Specification | 170382 Series Solder Feet Dimensions 23/Oct/2014 | |
| PCN Other | 74632 Series Tooling 03/Jul/2014 | |
| Online Catalog | 170382 Series | |
| Category | Connectors, Interconnects | |
| Family | Pluggable Connectors | |
| Manufacturer | Molex, LLC | |
| Series | 170382 | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Connector Style | Receptacle | |
| Connector Type | zSFP+ | |
| Number of Positions | 20 | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Features | Board Guide | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 15µin (0.38µm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1703820001 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1703820001 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 1703820001 is new and unused, you can buy 1703820001 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1703820001.
