Manufacturer Part Number: | 1700010104 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Rectangular Connectors - Housings |
Available Quantity: | 9665 Pieces |
Unit Price: | Quote by Email |

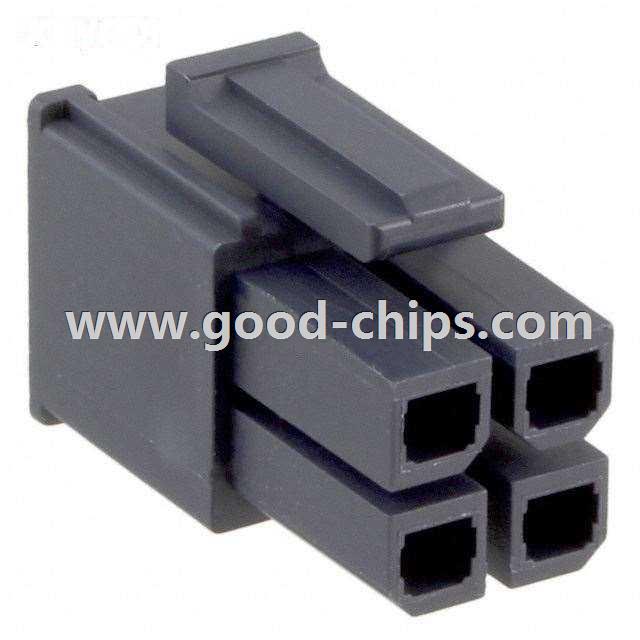

Description: | 4 Position Rectangular Housing Connector Receptacle Black 0.224" (5.70mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 1700010104 Datasheet |
Internal Part Number | 898-1700010104 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | Moisturizing Nylon Connector Parts | |
Video File | Molex - Mega-Fit® Power Connectors | |
Featured Product | Power Connectors | |
3D Model | 170001-0104 .pdf | |
PCN Assembly/Origin | 170001, 171692 Series Mar/2015 | |
Online Catalog | Mega-Fit Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Housings | |
Manufacturer | Molex, LLC | |
Series | Mega-Fit® | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Receptacle | |
Contact Type | Female Socket | |
Number of Positions | 4 | |
Pitch | 0.224" (5.70mm) | |
Number of Rows | 2 | |
Row Spacing | 0.224" (5.70mm) | |
Mounting Type | Free Hanging (In-Line) | |
Contact Termination | Crimp | |
Fastening Type | Latch Lock | |
Color | Black | |
Features | - | |
Note | Contacts Not Provided | |
Standard Package | 1,120 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 1700010104 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
1700010104 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 1700010104 is new and unused, you can buy 1700010104 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1700010104.
