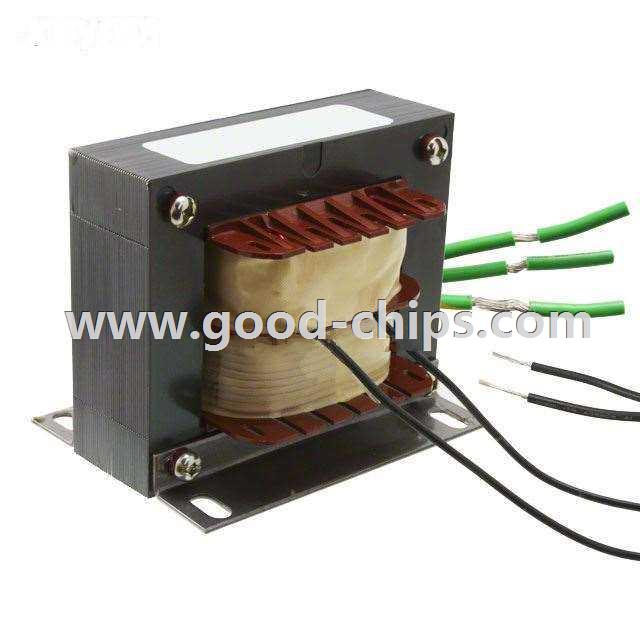

Manufacturer Part Number: | 165T22 |
---|---|
Manufacturer: | Hammond Manufacturing |
Product Category: | Power Transformers |
Available Quantity: | 9045 Pieces |
Unit Price: | Quote by Email |
Description: | XFRMR LAMINATED 264VA CHAS MOUNT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 165T22 Datasheet |
Internal Part Number | 898-165T22 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | 165 Series | |
Category | Transformers | |
Family | Power Transformers | |
Manufacturer | Hammond Manufacturing | |
Series | 165 | |
Part Status | Active | |
Type | Laminated Core | |
Voltage - Primary | 115V | |
Voltage - Secondary (Full Load) | 22V | |
Current - Output (Max) | 12A | |
Primary Winding(s) | Single | |
Secondary Winding(s) | Single | |
Center Tap | Yes | |
Power - Max | 264 VA | |
Mounting Type | Chassis Mount | |
Termination Style | Wire Leads | |
Size / Dimension | 114.30mm L x 88.90mm W | |
Height - Seated (Max) | 95.25mm | |
Voltage - Isolation | 2000Vrms | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 165T22 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
165T22 is in stock for immediate shipping now. We are the distributor of Hammond Manufacturing all series components. The condition of 165T22 is new and unused, you can buy 165T22 Hammond Manufacturing with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 165T22.
