164X11949X

164X11949X

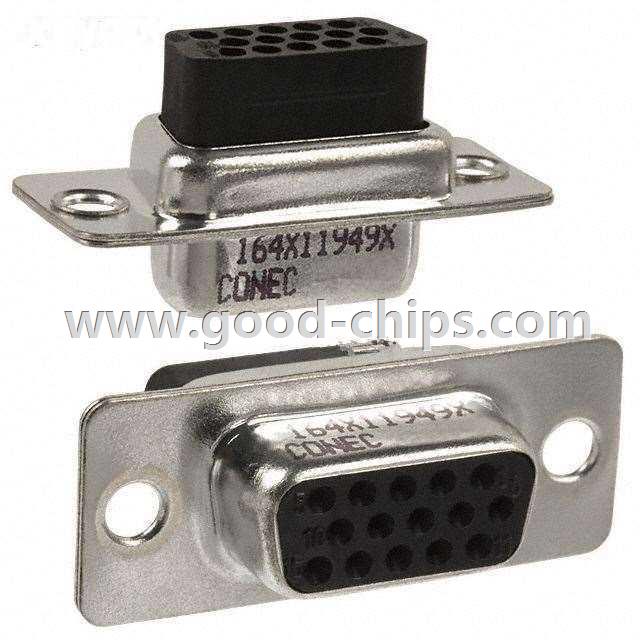

Manufacturer Part Number:164X11949X
Manufacturer:
Product Category:D-Sub, D-Shaped Connectors - Housings
Available Quantity:9190 Pieces
Unit Price:Quote by Email
Description:Receptacle for Female Contacts Housing D-Sub, High Density Connector 15 Position
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 164X11949X Datasheet
164X11949X´s Parameters
Internal Part Number898-164X11949X
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
RoHS InformationRoHS/Reach Cert of Compliance
Online Catalog 164X Series
CategoryConnectors, Interconnects
FamilyD-Sub, D-Shaped Connectors - Housings
ManufacturerConec
Series164X
PackagingBulk
Part StatusActive
Connector StyleD-Sub, High Density
Connector TypeReceptacle for Female Contacts
Number of Positions15
Number of Rows3
Shell Size, Connector Layout1 (DE, E) High Density
Contact TypeSignal
Mounting TypeFree Hanging (In-Line)
Flange FeatureHousing/Shell (Unthreaded)
Features-
Shell Material, FinishSteel, Tin Plated
Shell Finish Thickness320µin (8.13µm)
NoteContacts Not Provided
Ingress ProtectionIP20
Operating Temperature-55°C ~ 125°C
Mating Cycles-
Dielectric MaterialPolybutylene Terephthalate (PBT), Glass Filled
ColorBlack
Standard Package 50
Weight0.001 KG
ApplicationEmail for details
Replacement Part164X11949X
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

164X11949X is in stock for immediate shipping now. We are the distributor of Conec all series components. The condition of 164X11949X is new and unused, you can buy 164X11949X Conec with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 164X11949X.
