163X10209X

163X10209X

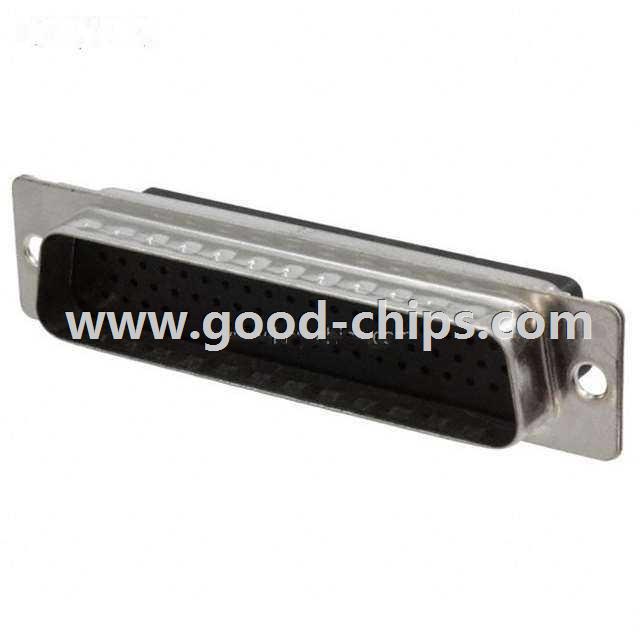

Manufacturer Part Number:163X10209X
Manufacturer:
Product Category:D-Sub, D-Shaped Connectors - Housings
Available Quantity:9724 Pieces
Unit Price:Quote by Email
Description:Plug for Male Contacts Housing D-Sub, High Density Connector 78 Position
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 163X10209X Datasheet
163X10209X´s Parameters
Internal Part Number898-163X10209X
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
RoHS InformationRoHS/Reach Cert of Compliance
Online Catalog 163X Series
CategoryConnectors, Interconnects
FamilyD-Sub, D-Shaped Connectors - Housings
ManufacturerConec
Series163X
PackagingBulk
Part StatusActive
Connector StyleD-Sub, High Density
Connector TypePlug for Male Contacts
Number of Positions78
Number of Rows4
Shell Size, Connector Layout5 (DD, D) High Density
Contact TypeSignal
Mounting TypeFree Hanging (In-Line)
Flange FeatureHousing/Shell (Unthreaded)
FeaturesGrounding Indents
Shell Material, FinishSteel, Tin Plated
Shell Finish Thickness320µin (8.13µm)
NoteContacts Not Provided
Ingress Protection-
Operating Temperature-55°C ~ 125°C
Mating Cycles-
Dielectric MaterialPolybutylene Terephthalate (PBT), Glass Filled
ColorBlack
Standard Package 40
Weight0.001 KG
ApplicationEmail for details
Replacement Part163X10209X
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

163X10209X is in stock for immediate shipping now. We are the distributor of Conec all series components. The condition of 163X10209X is new and unused, you can buy 163X10209X Conec with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 163X10209X.
