| Manufacturer Part Number: | 163A17769X |
|---|---|
| Manufacturer: | Conec |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9034 Pieces |
| Unit Price: | Quote by Email |

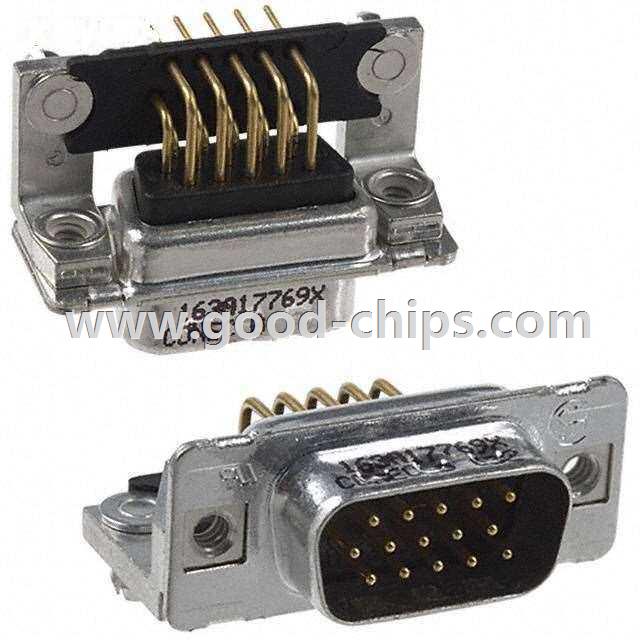

| Description: | 15 Position D-Sub, High Density Plug, Male Pins Connector, Board Edge, Through Hole, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 163A17769X Datasheet |
| Internal Part Number | 898-163A17769X | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS/Reach Cert of Compliance | |
| Online Catalog | 163A Series | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Conec | |
| Series | 163A | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | D-Sub, High Density | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 15 | |
| Number of Rows | 3 | |
| Shell Size, Connector Layout | 1 (DE, E) High Density | |
| Contact Type | Signal | |
| Mounting Type | Board Edge, Through Hole, Right Angle | |
| Flange Feature | Housing/Shell (4-40) | |
| Termination | Solder | |
| Features | Grounding Indents | |
| Shell Material, Finish | Steel, Tin Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 8µin (0.20µm) | |
| Ingress Protection | IP20 | |
| Operating Temperature | -55°C ~ 125°C | |
| Voltage Rating | 60V | |
| Current Rating | 3A | |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | |
| Color | Black | |
| Standard Package | 30 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 163A17769X | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
163A17769X is in stock for immediate shipping now. We are the distributor of Conec all series components. The condition of 163A17769X is new and unused, you can buy 163A17769X Conec with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 163A17769X.
