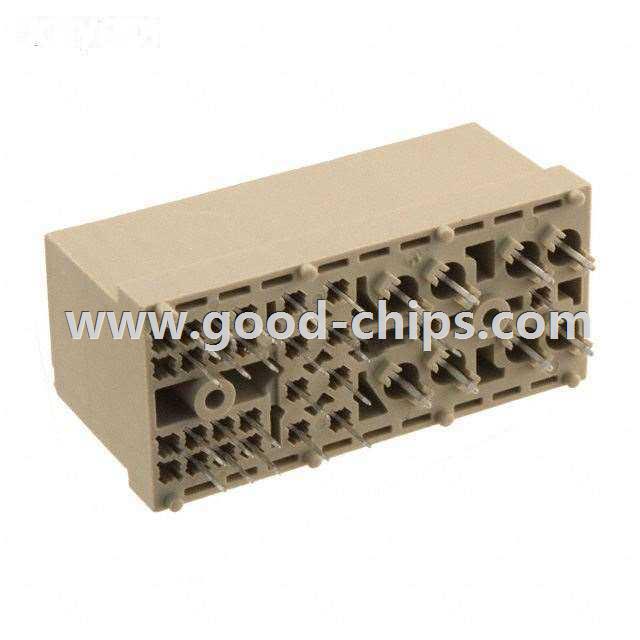

| Manufacturer Part Number: | 16310301201000 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Backplane Connectors - Specialized |
| Available Quantity: | 9026 Pieces |
| Unit Price: | Quote by Email |
| Description: | ATCA POWER BACKPLANE CONN 30PINS |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 16310301201000 Datasheet |
| Internal Part Number | 898-16310301201000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 16310301201000.stp 16310301201000.igs 16310301201000.wrl | |
| Online Catalog | ATCA / mTCA Series | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Specialized | |
| Manufacturer | Harting | |
| Series | ATCA / mTCA | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Usage | Backplane | |
| Connector Type | Receptacle, Female Sockets | |
| Connector Style | Power | |
| Number of Positions | 34 | |
| Number of Positions Loaded | 30 | |
| Pitch | - | |
| Number of Rows | - | |
| Number of Columns | - | |
| Mounting Type | Through Hole | |
| Termination | Press-Fit | |
| Contact Layout, Typical | 26 Signal, 8 Power | |
| Features | Mating Guide | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Color | - | |
| Current Rating | - | |
| Material Flammability Rating | UL94 V-0 | |
| Operating Temperature | - | |
| Voltage Rating | - | |
| Standard Package | 32 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 16310301201000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
16310301201000 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 16310301201000 is new and unused, you can buy 16310301201000 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 16310301201000.
