| Manufacturer Part Number: | 16241701301000 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Backplane Connectors - Specialized |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

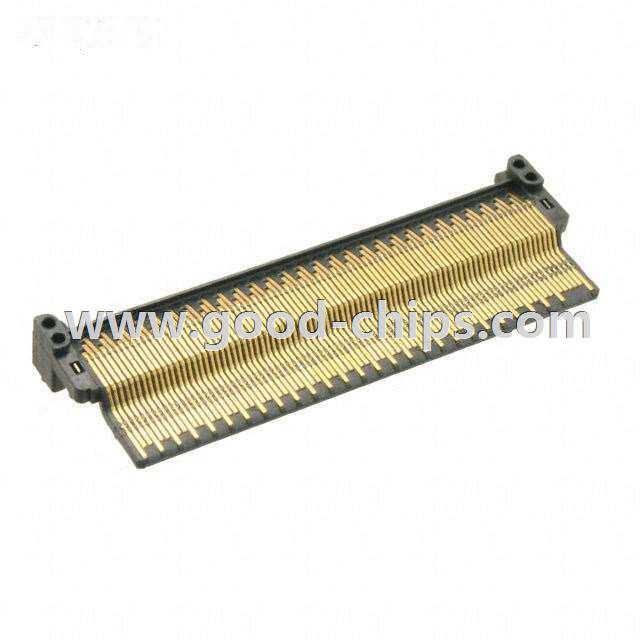

| Description: | PLUG CONNECTOR MCH BASIC SIDE |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 16241701301000 Datasheet |
| Internal Part Number | 898-16241701301000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 16241701301000.stp 16241701301000.igs 16241701301000.wrl | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Specialized | |
| Manufacturer | Harting | |
| Series | ATCA / mTCA | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Connector Usage | Backplane-to-Daughtercard | |
| Connector Type | Plug, Piggyback | |
| Connector Style | MCH | |
| Number of Positions | 170 | |
| Number of Positions Loaded | All | |
| Pitch | 0.029" (0.75mm) | |
| Number of Rows | - | |
| Number of Columns | - | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Press-Fit | |
| Contact Layout, Typical | - | |
| Features | Board Guide | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Color | - | |
| Current Rating | - | |
| Material Flammability Rating | UL94 V-0 | |
| Operating Temperature | - | |
| Voltage Rating | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 16241701301000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
16241701301000 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 16241701301000 is new and unused, you can buy 16241701301000 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 16241701301000.
