Manufacturer Part Number: | 16220-3 |
---|---|
Manufacturer: | Eaton |
Product Category: | Terminal Blocks - Power Distribution |
Available Quantity: | 9348 Pieces |
Unit Price: | Quote by Email |

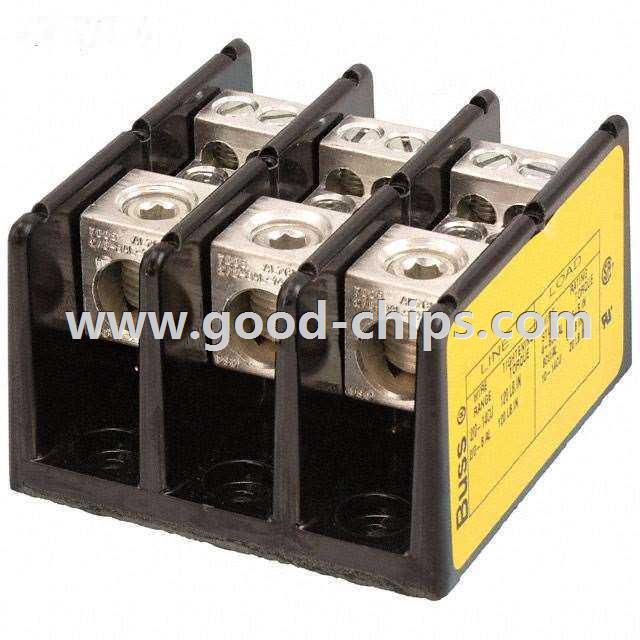

Description: | 3 Pole Power Distribution Block 175A 600V |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 16220-3 Datasheet |
Internal Part Number | 898-16220-3 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Magnum® 160 and 162 Series | |
Category | Connectors, Interconnects | |
Family | Terminal Blocks - Power Distribution | |
Manufacturer | Eaton | |
Series | Magnum® 162 | |
Part Status | Active | |
Type | Power Distribution Block | |
Number of Poles | 3 | |
Line Side Connections Per Pole | 1 | |
Load Side Connections Per Pole | 4 | |
Line Side Connection Type | Screw Connection | |
Load Side Connection Type | Screw Connection | |
Line Side Wire/Stud Size | 2/0 - #14CU; 2/0 - #8AL | |
Load Side Wire/Stud Size | #4 - #14CU; 4 - #8AL | |
Voltage - Rated | 600V | |
Current Rating | 175A | |
Standard Package | 24 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 16220-3 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
16220-3 is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of 16220-3 is new and unused, you can buy 16220-3 Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 16220-3.
