Manufacturer Part Number: | 1613-4 |
---|---|
Manufacturer: | Keystone Electronics |
Product Category: | Terminals - Turret Connectors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

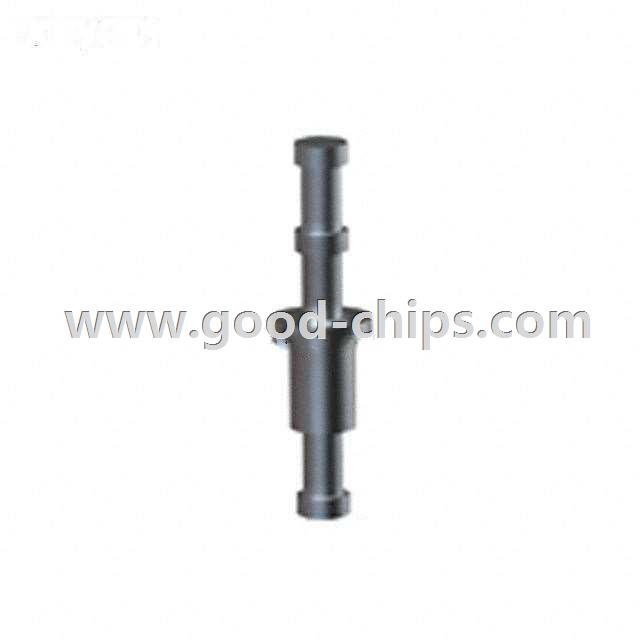

Description: | Terminal Turret Connector Double End 0.186" (4.72mm) Tin |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 1613-4 Datasheet |
Internal Part Number | 898-1613-4 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | RoHS Compliance Statement | |
Category | Connectors, Interconnects | |
Family | Terminals - Turret Connectors | |
Manufacturer | Keystone Electronics | |
Series | - | |
Part Status | Active | |
Terminal Type | Double End | |
Number of Turrets | Single, Double | |
Length - Above Board | 0.186" (4.72mm) | |
Length - Below Flange | 0.227" (5.77mm) | |
Length - Overall | 0.413" (10.49mm) | |
Mounting Type | Through Hole | |
Termination | Staking Flare | |
Flange Diameter | 0.093" (2.36mm) | |
Diameter - Turret Head | 0.050" (1.27mm) | |
Staking Side OD | 0.062" (1.57mm) | |
Staking Side ID | - | |
Mounting Hole Diameter | 0.067" (1.70mm) | |
Board Thickness | 0.125" (3.18mm) | |
Contact Material | Brass | |
Contact Finish | Tin | |
Contact Finish Thickness | - | |
Insulation | Non-Insulated | |
Material - Insulation | - | |
Insulation Color | - | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 1613-4 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
1613-4 is in stock for immediate shipping now. We are the distributor of Keystone Electronics all series components. The condition of 1613-4 is new and unused, you can buy 1613-4 Keystone Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1613-4.
