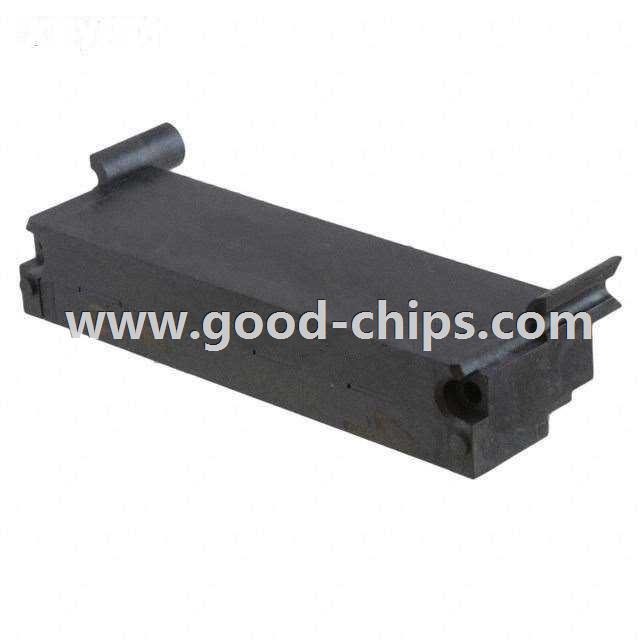

| Manufacturer Part Number: | 16041705104000 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Card Edge Connectors - Edgeboard Connectors |
| Available Quantity: | 9063 Pieces |
| Unit Price: | Quote by Email |
| Description: | ATCA ADVANCEDMC B+ PEG CON |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 16041705104000 Datasheet |
| Internal Part Number | 898-16041705104000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 16041705104000.stp 16041705104000.igs 16041705104000.wrl | |
| Online Catalog | ATCA / mTCA Series | |
| Category | Connectors, Interconnects | |
| Family | Card Edge Connectors - Edgeboard Connectors | |
| Manufacturer | Harting | |
| Series | ATCA / mTCA | |
| Packaging | Bulk | |
| Part Status | Active | |
| Card Type | Advanced Mezzanine Card B+, MicroTCA | |
| Gender | Female | |
| Number of Positions/Bay/Row | 85 | |
| Number of Positions | 170 | |
| Card Thickness | - | |
| Number of Rows | 2 | |
| Pitch | 0.029" (0.75mm) | |
| Features | Board Guide | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Press-Fit | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | Flash | |
| Contact Type | - | |
| Color | - | |
| Flange Feature | - | |
| Operating Temperature | - | |
| Material - Insulation | Liquid Crystal Polymer (LCP) | |
| Read Out | Dual | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 16041705104000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
16041705104000 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 16041705104000 is new and unused, you can buy 16041705104000 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 16041705104000.
