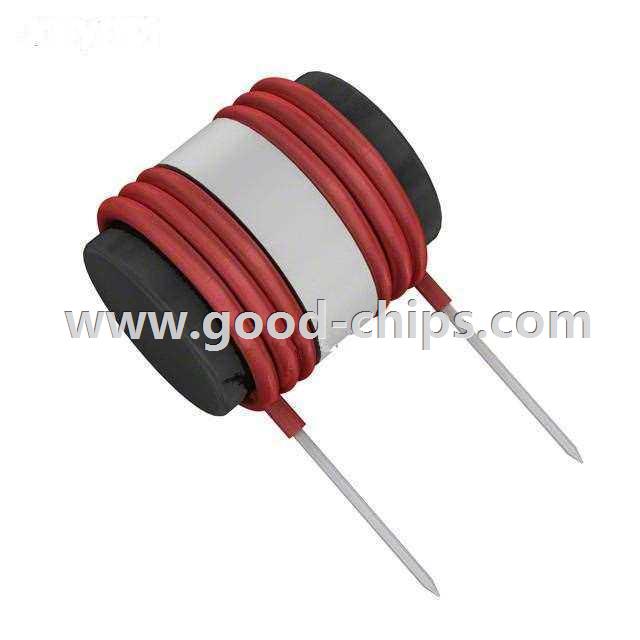

15HC-27

15HC-27
Manufacturer Part Number:15HC-27
Manufacturer:
Product Category:Fixed Inductors
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:27µH Unshielded Wirewound Inductor 15A 15 mOhm Max Radial
Lead Free Status / RoHS Status:Contains lead / RoHS non-compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 15HC-27 Datasheet
15HC-27´s Parameters
Internal Part Number898-15HC-27
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryInductors, Coils, Chokes
FamilyFixed Inductors
ManufacturerAPI Delevan Inc.
SeriesHC
PackagingBulk
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance27µH
Tolerance±10%
Current Rating15A
Current - Saturation14A
ShieldingUnshielded
DC Resistance (DCR)15 mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-
Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial
Size / Dimension1.000" Dia x 1.375" L (25.40mm x 34.93mm)
Height - Seated (Max)-
Standard Package 50
Weight0.001 KG
ApplicationEmail for details
Replacement Part15HC-27
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

15HC-27 is in stock for immediate shipping now. We are the distributor of API Delevan Inc. all series components. The condition of 15HC-27 is new and unused, you can buy 15HC-27 API Delevan Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 15HC-27.
