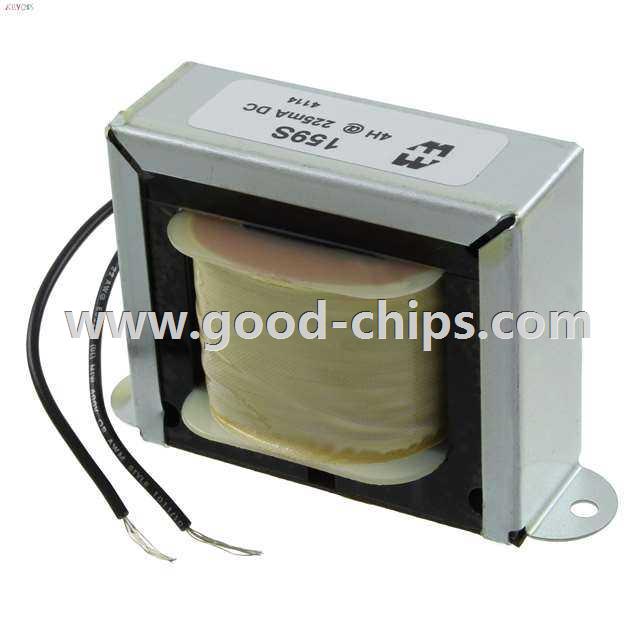

| Manufacturer Part Number: | 159S |
|---|---|
| Manufacturer: | Hammond Manufacturing |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 4H Unshielded Inductor 225mA 65 Ohm Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 159S Datasheet |
| Internal Part Number | 898-159S | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Hammond Manufacturing | |
| Series | 159 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | - | |
| Material - Core | - | |
| Inductance | 4H | |
| Tolerance | ±15% | |
| Current Rating | 225mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 65 Ohm | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | - | |
| Frequency - Test | - | |
| Mounting Type | Chassis Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 4.030" L x 2.250" W (102.36mm x 57.15mm) | |
| Height - Seated (Max) | 2.630" (66.80mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 159S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
159S is in stock for immediate shipping now. We are the distributor of Hammond Manufacturing all series components. The condition of 159S is new and unused, you can buy 159S Hammond Manufacturing with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 159S.
