Manufacturer Part Number: | 1593-2 |
---|---|
Manufacturer: | Keystone Electronics |
Product Category: | Terminals - Turret Connectors |
Available Quantity: | 37815 Pieces |
Unit Price: | Quote by Email |

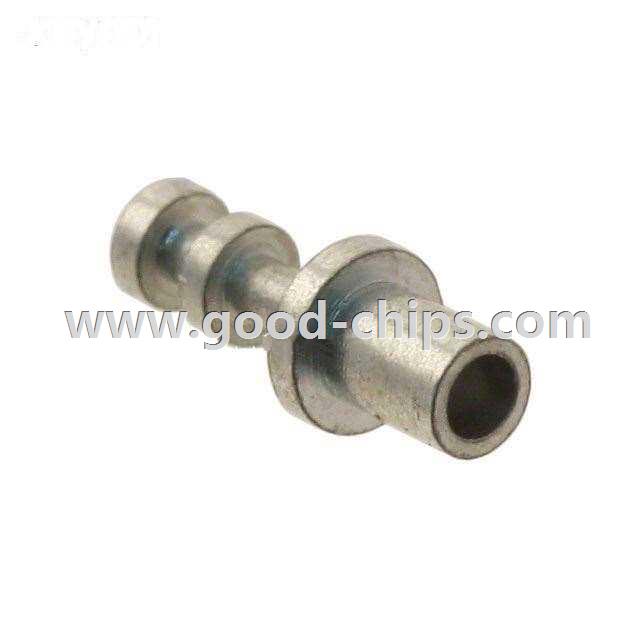

Description: | Terminal Turret Connector Single End 0.156" (3.96mm) Tin |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 1593-2 Datasheet |
Internal Part Number | 898-1593-2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | RoHS Compliance Statement | |
Online Catalog | Turret Terminals - Keystone Electronics | |
Category | Connectors, Interconnects | |
Family | Terminals - Turret Connectors | |
Manufacturer | Keystone Electronics | |
Series | - | |
Part Status | Active | |
Terminal Type | Single End | |
Number of Turrets | Double | |
Length - Above Board | 0.156" (3.96mm) | |
Length - Below Flange | 0.084" (2.13mm) | |
Length - Overall | 0.240" (6.10mm) | |
Mounting Type | Through Hole | |
Termination | Staking Flare | |
Flange Diameter | 0.094" (2.39mm) | |
Diameter - Turret Head | 0.062" (1.57mm) | |
Staking Side OD | 0.062" (1.57mm) | |
Staking Side ID | - | |
Mounting Hole Diameter | 0.067" (1.70mm) | |
Board Thickness | 0.062" (1.57mm) | |
Contact Material | Brass | |
Contact Finish | Tin | |
Contact Finish Thickness | - | |
Insulation | Non-Insulated | |
Material - Insulation | - | |
Insulation Color | - | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 1593-2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
1593-2 is in stock for immediate shipping now. We are the distributor of Keystone Electronics all series components. The condition of 1593-2 is new and unused, you can buy 1593-2 Keystone Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1593-2.
