| Manufacturer Part Number: | 158108-1100 |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Rectangular Connectors - Free Hanging, Panel Mount |
| Available Quantity: | 9250 Pieces |
| Unit Price: | Quote by Email |

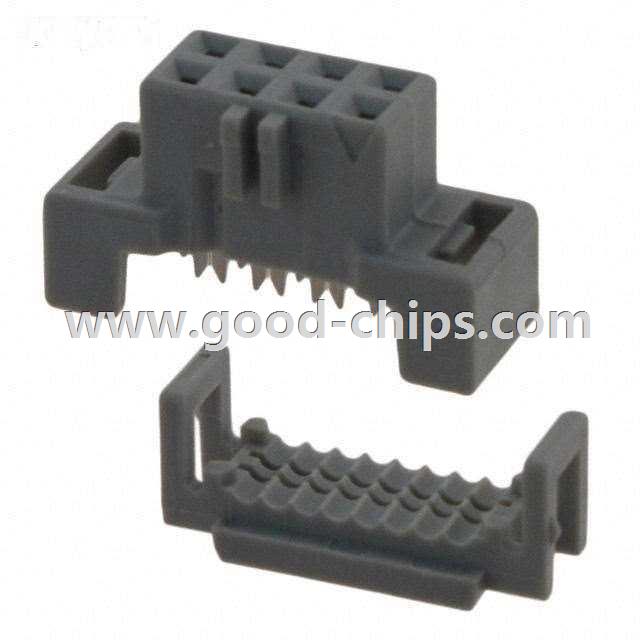

| Description: | 8 Position Rectangular Socket Connector IDC Gold 28 AWG |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 158108-1100 Datasheet |
| Internal Part Number | 898-158108-1100 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | 158 Socket and 159 Header Series | |
| Online Catalog | 158 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Free Hanging, Panel Mount | |
| Manufacturer | 3M | |
| Series | 158 | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | Socket | |
| Contact Type | Female Socket | |
| Number of Positions | 8 | |
| Pitch | 0.079" (2.00mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.079" (2.00mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Fastening Type | - | |
| Cable Termination | IDC | |
| Wire Type | Ribbon Cable | |
| Wire Gauge | 28 AWG | |
| Features | Feed Through | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Color | Gray | |
| Standard Package | 336 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 158108-1100 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
158108-1100 is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 158108-1100 is new and unused, you can buy 158108-1100 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 158108-1100.
