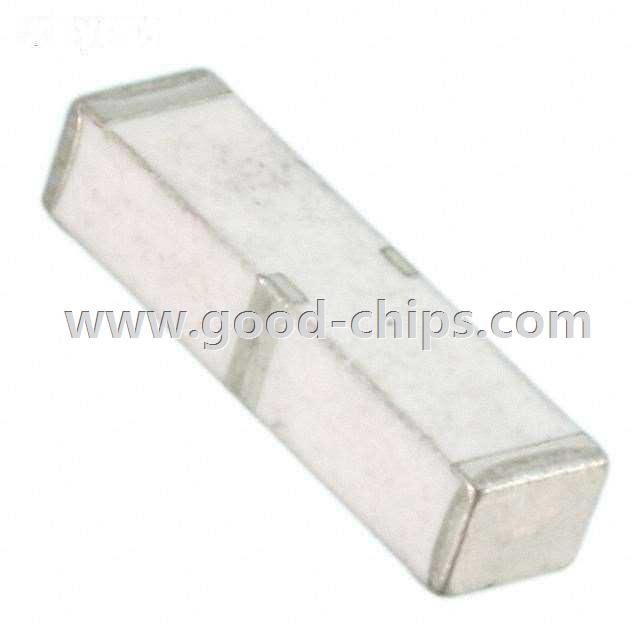

Manufacturer Part Number: | 1575AT54A0010E |
---|---|
Manufacturer: | Johanson Technology Inc. |
Product Category: | RF Antennas |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 1.6GHz GLONASS, GPS Chip RF Antenna 1.575GHz ~ 1.605GHz 1.3dBi Solder Surface Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 1575AT54A0010E Datasheet |
Internal Part Number | 898-1575AT54A0010E | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | IoT Product Selector | |
Online Catalog | Johanson Technology Inc - Embedded | |
Category | RF/IF and RFID | |
Family | RF Antennas | |
Manufacturer | Johanson Technology Inc. | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Frequency Group | UHF (1 GHz ~ 2 GHz) | |
Frequency (Center/Band) | 1.6GHz | |
Frequency Range | 1.575GHz ~ 1.605GHz | |
Antenna Type | Chip | |
Number of Bands | 1 | |
VSWR | - | |
Return Loss | -9.5dB | |
Gain | 1.3dBi | |
Power - Max | 2W | |
Features | - | |
Termination | Solder | |
Ingress Protection | - | |
Mounting Type | Surface Mount | |
Height (Max) | 0.126" (3.20mm) | |
Applications | GLONASS, GPS | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 1575AT54A0010E | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
1575AT54A0010E is in stock for immediate shipping now. We are the distributor of Johanson Technology Inc. all series components. The condition of 1575AT54A0010E is new and unused, you can buy 1575AT54A0010E Johanson Technology Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1575AT54A0010E.
