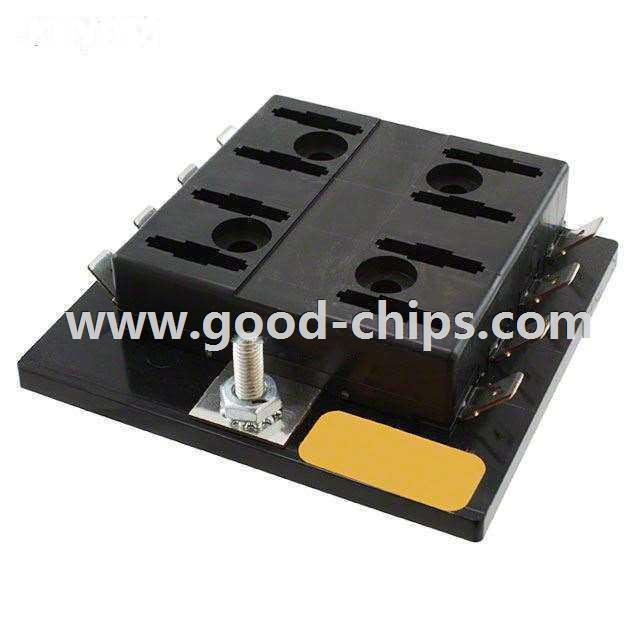

| Manufacturer Part Number: | 15600-08-20 |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Fuseholders |
| Available Quantity: | 9040 Pieces |
| Unit Price: | Quote by Email |
| Description: | FUSE BLOCK BLADE 30A PANEL MNT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 15600-08-20 Datasheet |
| Internal Part Number | 898-15600-08-20 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | ATC 15600 Series | |
| Category | Circuit Protection | |
| Family | Fuseholders | |
| Manufacturer | Eaton | |
| Series | 15600 | |
| Part Status | Active | |
| Fuseholder Type | Block | |
| Fuse Type | Blade | |
| For Use With/Related Products | ATC, ATO | |
| Fuse Size | 0.76" L x 0.207" W x 0.752" H (19.3mm x 5.25mm x 19.1mm) | |
| Number of Circuits | 8 | |
| Voltage | - | |
| Current Rating | 30A | |
| Mounting Type | Panel Mount | |
| Orientation | - | |
| Termination Style | Quick Connect - 0.250" (6.3mm) | |
| Contact Material | Copper Alloy | |
| Contact Finish | Tin | |
| Standard Package | 30 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 15600-08-20 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
15600-08-20 is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of 15600-08-20 is new and unused, you can buy 15600-08-20 Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 15600-08-20.
