Manufacturer Part Number: | 155250-2200-RB |
---|---|
Manufacturer: | 3M |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

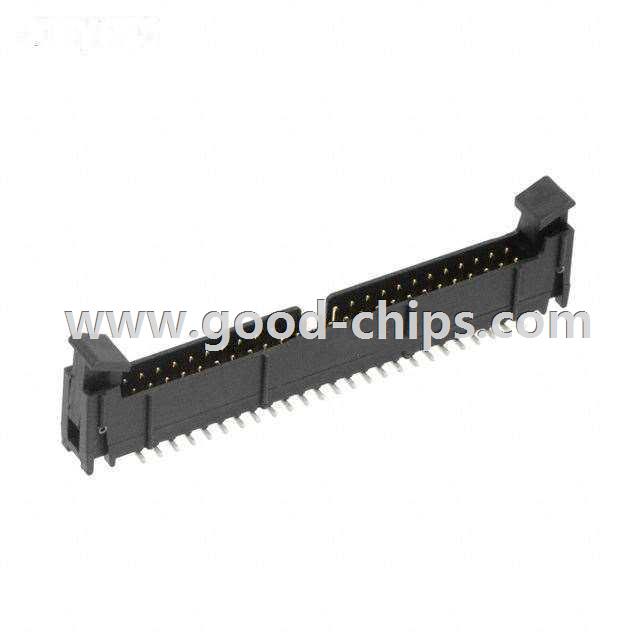

Description: | 50 Positions Header, Shrouded Connector 0.079" (2.00mm) Surface Mount Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 155250-2200-RB Datasheet |
Internal Part Number | 898-155250-2200-RB | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | IDC Wiremount Connectors Primer | |
Video File | 2mm Latch Header | |
3D Model | 155250-2x0x-xx-Wx.igs 155250-2x0x-xx-Wx.x_t 155250-2x0x-xx-Wx.stp | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | 3M | |
Series | 1552 | |
Packaging | Tray | |
Part Status | Active | |
Contact Type | Male Pin | |
Connector Type | Header, Shrouded | |
Number of Positions | 50 | |
Number of Positions Loaded | All | |
Pitch | 0.079" (2.00mm) | |
Number of Rows | 2 | |
Row Spacing | 0.079" (2.00mm) | |
Contact Mating Length | 0.150" (3.81mm) | |
Mounting Type | Surface Mount | |
Termination | Solder | |
Fastening Type | Latch Lock/Eject Hooks | |
Features | - | |
Contact Finish | Gold | |
Contact Finish Thickness | 30µin (0.76µm) | |
Color | Black | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 155250-2200-RB | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
155250-2200-RB is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 155250-2200-RB is new and unused, you can buy 155250-2200-RB 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 155250-2200-RB.
