| Manufacturer Part Number: | 1540M12 |
|---|---|
| Manufacturer: | Hammond Manufacturing |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

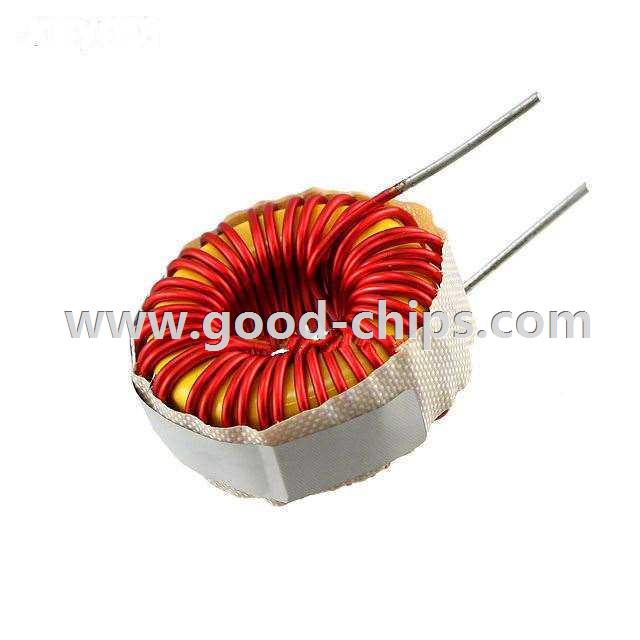

| Description: | 150µH Unshielded Toroidal Inductor 4.75A 46 mOhm Max Radial |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1540M12 Datasheet |
| Internal Part Number | 898-1540M12 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Hammond Manufacturing | |
| Series | 1540 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Toroidal | |
| Material - Core | - | |
| Inductance | 150µH | |
| Tolerance | ±15% | |
| Current Rating | 4.75A | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 46 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | - | |
| Frequency - Test | - | |
| Mounting Type | Through Hole | |
| Package / Case | Radial | |
| Size / Dimension | 1.250" Dia x 0.625" W (31.75mm x 15.88mm) | |
| Height - Seated (Max) | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1540M12 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1540M12 is in stock for immediate shipping now. We are the distributor of Hammond Manufacturing all series components. The condition of 1540M12 is new and unused, you can buy 1540M12 Hammond Manufacturing with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1540M12.
