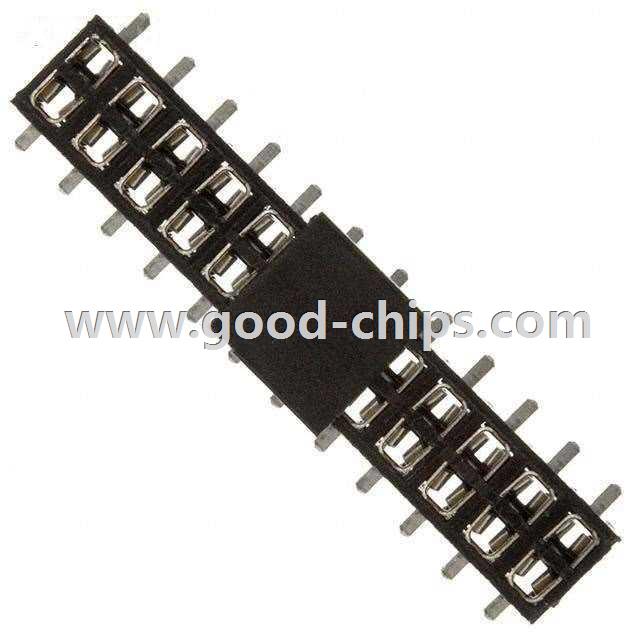

| Manufacturer Part Number: | 153224-2000-RB-WD |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets |
| Available Quantity: | 9810 Pieces |
| Unit Price: | Quote by Email |
| Description: | 24 Position Receptacle, Bottom or Top Entry Connector 0.079" (2.00mm) Surface Mount Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 153224-2000-RB-WD Datasheet |
| Internal Part Number | 898-153224-2000-RB-WD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 153224-20xx.igs 153224-20xx.x_t 153224-20xx.stp | |
| PCN Design/Specification | 1502/1532 Series Insulator 3/Jun/2010 | |
| Online Catalog | 1532 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Receptacles, Female Sockets | |
| Manufacturer | 3M | |
| Series | 1532 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Connector Type | Receptacle, Bottom or Top Entry | |
| Contact Type | Female Socket | |
| Number of Positions | 24 | |
| Number of Positions Loaded | All | |
| Pitch | 0.079" (2.00mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.079" (2.00mm) | |
| Mounting Type | Surface Mount | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Color | Black | |
| Standard Package | 800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 153224-2000-RB-WD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
153224-2000-RB-WD is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 153224-2000-RB-WD is new and unused, you can buy 153224-2000-RB-WD 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 153224-2000-RB-WD.
