Manufacturer Part Number: | 15225 |
---|---|
Manufacturer: | Keystone Electronics |
Product Category: | Terminal Strips and Turret Boards |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

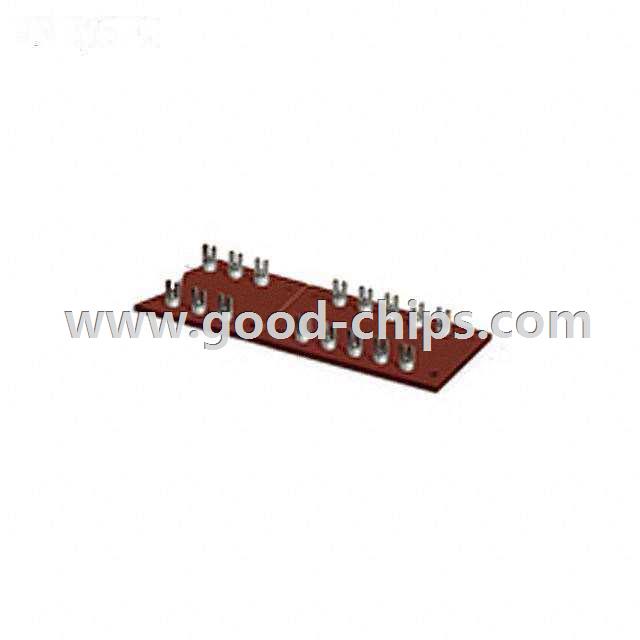

Description: | 25 Position Turret Board, Scored 0.218" (5.54mm) Turret, Fork End |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 15225 Datasheet |
Internal Part Number | 898-15225 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | RoHS Compliance Statement | |
Category | Connectors, Interconnects | |
Family | Terminal Strips and Turret Boards | |
Manufacturer | Keystone Electronics | |
Series | - | |
Part Status | Active | |
Type | Turret Board, Scored | |
Terminal Type | Turret, Fork End | |
Number of Positions | 25 | |
Pitch | 0.218" (5.54mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Board Size | 7.812" L x 0.312" W x 0.062" H (198.40mm x 7.90mm x 1.57mm) | |
Material - Board | Glass Epoxy | |
Features | Miniature Strip | |
Material Flammability Rating | - | |
Contact Finish | Tin | |
Contact Material | Brass | |
Mounting Hole Diameter | 0.062" (1.57mm) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 15225 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
15225 is in stock for immediate shipping now. We are the distributor of Keystone Electronics all series components. The condition of 15225 is new and unused, you can buy 15225 Keystone Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 15225.
