Manufacturer Part Number: | 152212-0100-GB |
---|---|
Manufacturer: | 3M |
Product Category: | Rectangular Connectors - Free Hanging, Panel Mount |
Available Quantity: | 9577 Pieces |
Unit Price: | Quote by Email |

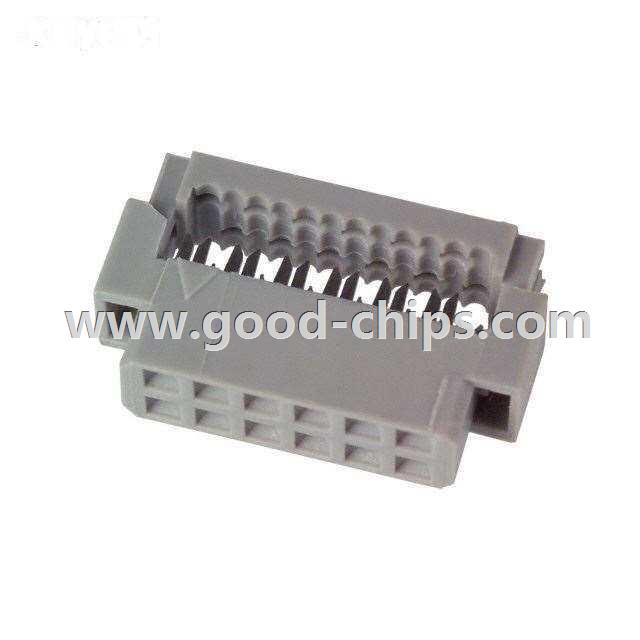

Description: | 12 Position Rectangular Receptacle Connector IDC Gold 28 AWG |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 152212-0100-GB Datasheet |
Internal Part Number | 898-152212-0100-GB | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | 3M™ 2mm Latch/Eject Header, 1552 Series IDC Wiremount Connectors Primer | |
Online Catalog | 1522 Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Free Hanging, Panel Mount | |
Manufacturer | 3M | |
Series | 1522 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Receptacle | |
Contact Type | Female Socket | |
Number of Positions | 12 | |
Pitch | 0.079" (2.00mm) | |
Number of Rows | 2 | |
Row Spacing | 0.079" (2.00mm) | |
Mounting Type | Free Hanging (In-Line) | |
Fastening Type | - | |
Cable Termination | IDC | |
Wire Type | Ribbon Cable | |
Wire Gauge | 28 AWG | |
Features | Feed Through | |
Contact Finish | Gold | |
Contact Finish Thickness | 30µin (0.76µm) | |
Color | Gray | |
Standard Package | 125 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 152212-0100-GB | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
152212-0100-GB is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 152212-0100-GB is new and unused, you can buy 152212-0100-GB 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 152212-0100-GB.
