Manufacturer Part Number: | 1513A5011 |
---|---|
Manufacturer: | Winchester Electronics |
Product Category: | Coaxial Connectors (RF) - Adapters |
Available Quantity: | 9011 Pieces |
Unit Price: | Quote by Email |

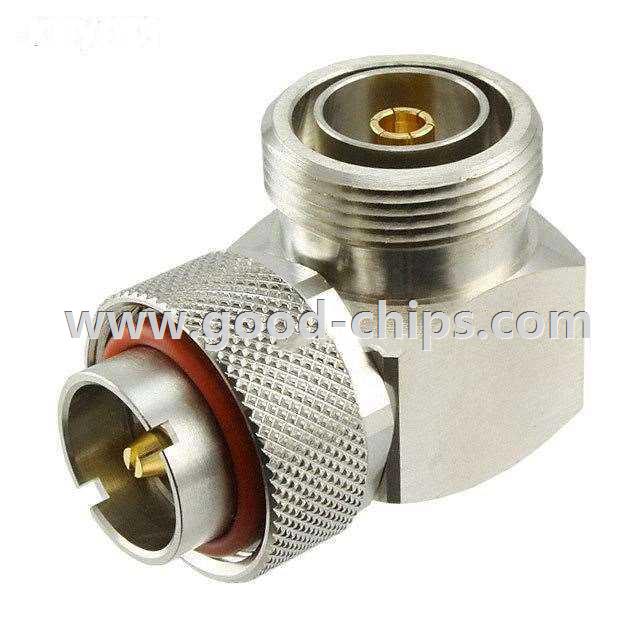

Description: | Adapter Coaxial Connector 7/16 Plug, Male Pin To 7/16 Jack, Female Socket |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 1513A5011 Datasheet |
Internal Part Number | 898-1513A5011 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Coaxial, RF Adapters | |
Category | Connectors, Interconnects | |
Family | Coaxial Connectors (RF) - Adapters | |
Manufacturer | Winchester Electronics | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Adapter Type | Plug to Jack | |
Adapter Series | 7/16 DIN to 7/16 DIN | |
Center Gender | Female to Male | |
Convert From (Adapter End) | 7/16 Plug, Male Pin | |
Convert To (Adapter End) | 7/16 Jack, Female Socket | |
Conversion Type | Same Series | |
Impedance | - | |
Style | - | |
Mounting Type | Free Hanging (In-Line), Right Angle | |
Frequency - Max | - | |
Ingress Protection | - | |
Features | - | |
Body Material | - | |
Body Finish | Tri-Metal | |
Dielectric Material | - | |
Center Contact Material | - | |
Center Contact Plating | - | |
Mating Cycles | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 1513A5011 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
1513A5011 is in stock for immediate shipping now. We are the distributor of Winchester Electronics all series components. The condition of 1513A5011 is new and unused, you can buy 1513A5011 Winchester Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1513A5011.
