| Manufacturer Part Number: | 151260-8422-RB |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9810 Pieces |
| Unit Price: | Quote by Email |

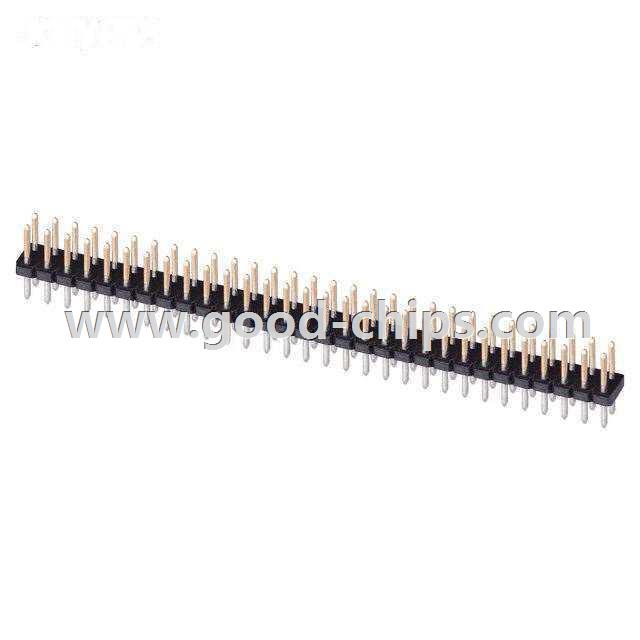

| Description: | 60 Positions Header, Unshrouded Connector 0.079" (2.00mm) Through Hole Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 151260-8422-RB Datasheet |
| Internal Part Number | 898-151260-8422-RB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | 1512 Series 14/Dec/2010 | |
| Online Catalog | 1512 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | 3M | |
| Series | 1512 | |
| Packaging | Tray | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Unshrouded | |
| Number of Positions | 60 | |
| Number of Positions Loaded | All | |
| Pitch | 0.079" (2.00mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.079" (2.00mm) | |
| Contact Mating Length | 0.152" (3.86mm) | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Color | Black | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 151260-8422-RB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
151260-8422-RB is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 151260-8422-RB is new and unused, you can buy 151260-8422-RB 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 151260-8422-RB.
