151208-7422-RB

151208-7422-RB
Manufacturer Part Number:151208-7422-RB
Manufacturer:
Product Category:Rectangular Connectors - Headers, Male Pins
Available Quantity:10107 Pieces
Unit Price:Quote by Email

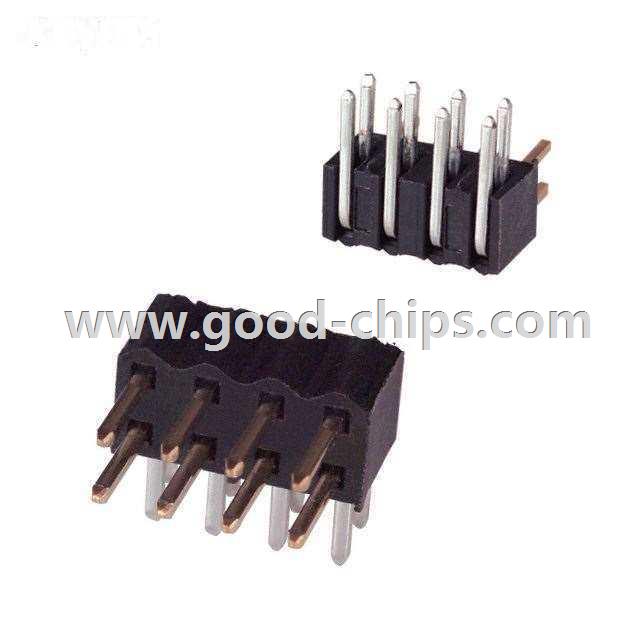

Description:8 Positions Header, Unshrouded Connector 0.079" (2.00mm) Through Hole, Right Angle Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 151208-7422-RB Datasheet
151208-7422-RB´s Parameters
Internal Part Number898-151208-7422-RB
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
PCN Design/Specification1512 Series 14/Dec/2010
Online Catalog 1512 Series
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
Manufacturer3M
Series1512
PackagingTray
Part StatusActive
Contact TypeMale Pin
Connector TypeHeader, Unshrouded
Number of Positions8
Number of Positions LoadedAll
Pitch0.079" (2.00mm)
Number of Rows2
Row Spacing0.079" (2.00mm)
Contact Mating Length0.152" (3.86mm)
Mounting TypeThrough Hole, Right Angle
TerminationSolder
Fastening Type-
Features-
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
ColorBlack
Standard Package 400
Weight0.001 KG
ApplicationEmail for details
Replacement Part151208-7422-RB
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

151208-7422-RB is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 151208-7422-RB is new and unused, you can buy 151208-7422-RB 3M with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 151208-7422-RB.
