Manufacturer Part Number: | 15110682601000 |
---|---|
Manufacturer: | Harting |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

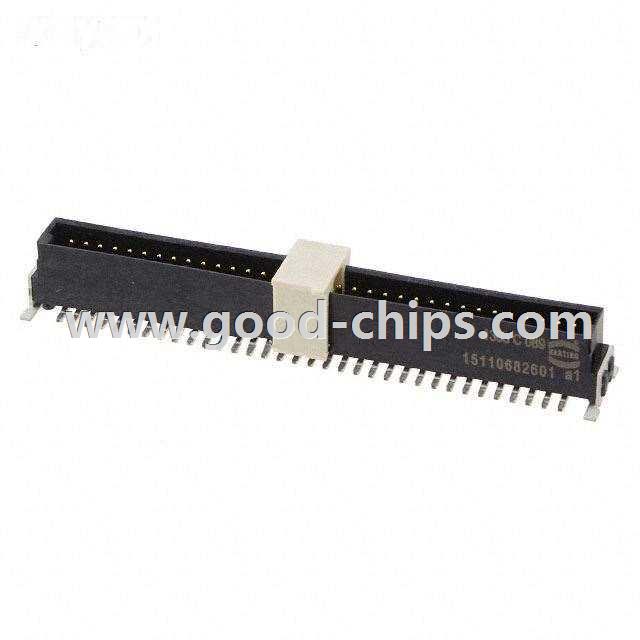

Description: | 68 Positions Header, Shrouded Connector 0.050" (1.27mm) Surface Mount Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 15110682601000 Datasheet |
Internal Part Number | 898-15110682601000 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Har-Flex | |
Video File | HARTING har-flex® Connectors | |
Featured Product | Har-flex® Mezzanine Connectors | |
3D Model | 1511068x601yyy.jt 1511068x601yyy.stp | |
Online Catalog | Har-Flex® Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | Harting | |
Series | har-flex® | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Contact Type | Male Pin | |
Connector Type | Header, Shrouded | |
Number of Positions | 68 | |
Number of Positions Loaded | All | |
Pitch | 0.050" (1.27mm) | |
Number of Rows | 2 | |
Row Spacing | 0.050" (1.27mm) | |
Contact Mating Length | 0.157" (4.00mm) | |
Mounting Type | Surface Mount | |
Termination | Solder | |
Fastening Type | - | |
Features | Board Guide, Solder Retention | |
Contact Finish | Gold | |
Contact Finish Thickness | - | |
Color | Black | |
Standard Package | 280 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 15110682601000 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
15110682601000 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 15110682601000 is new and unused, you can buy 15110682601000 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 15110682601000.
