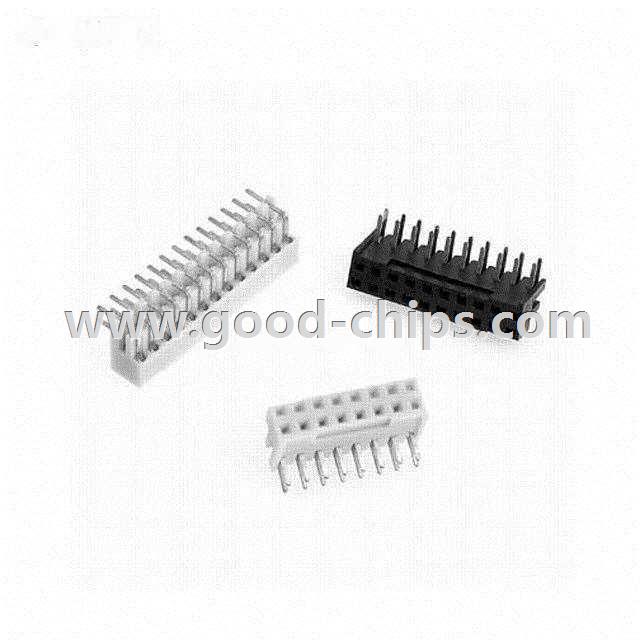

| Manufacturer Part Number: | 150230-5002-TB |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 30 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Gold |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 150230-5002-TB Datasheet |
| Internal Part Number | 898-150230-5002-TB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | 150/153 Series Plating 01/Oct/2012 1502yy-yyyy-TB Series 09/Nov/2015 | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Receptacles, Female Sockets | |
| Manufacturer | 3M | |
| Series | 1502 | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Connector Type | Receptacle | |
| Contact Type | Female Socket | |
| Number of Positions | 30 | |
| Number of Positions Loaded | All | |
| Pitch | 0.079" (2.00mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.079" (2.00mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Color | Black | |
| Standard Package | 81 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 150230-5002-TB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
150230-5002-TB is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 150230-5002-TB is new and unused, you can buy 150230-5002-TB 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 150230-5002-TB.
