| Manufacturer Part Number: | 15-92-2120 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | D-Shaped Connectors - Centronics |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

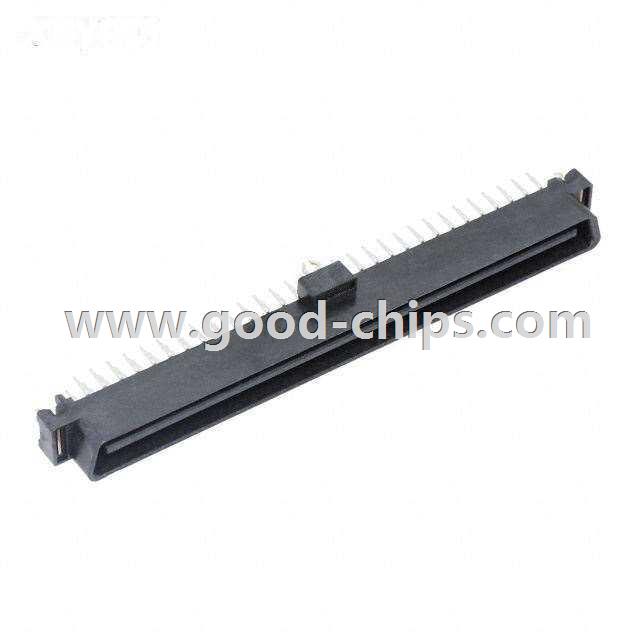

| Description: | 120 Position Plug Connector Through Hole Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 15-92-2120 Datasheet |
| Internal Part Number | 898-15-92-2120 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 15-92-2120 Cert of Compliance | |
| 3D Model | 15-92-2120.stp | |
| Category | Connectors, Interconnects | |
| Family | D-Shaped Connectors - Centronics | |
| Manufacturer | Molex Connector Corporation | |
| Series | EBBI™ 71661 | |
| Part Status | Active | |
| Connector Style | Center Strip Contacts | |
| Connector Type | Plug | |
| Number of Positions | 120 | |
| Number of Rows | 2 | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Flange Feature | - | |
| Type | - | |
| Features | Board Guide, Board Lock | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 15-92-2120 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
15-92-2120 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 15-92-2120 is new and unused, you can buy 15-92-2120 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 15-92-2120.
