Manufacturer Part Number: | 15-29-1026 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Shunts, Jumpers |
Available Quantity: | 10515 Pieces |
Unit Price: | Quote by Email |

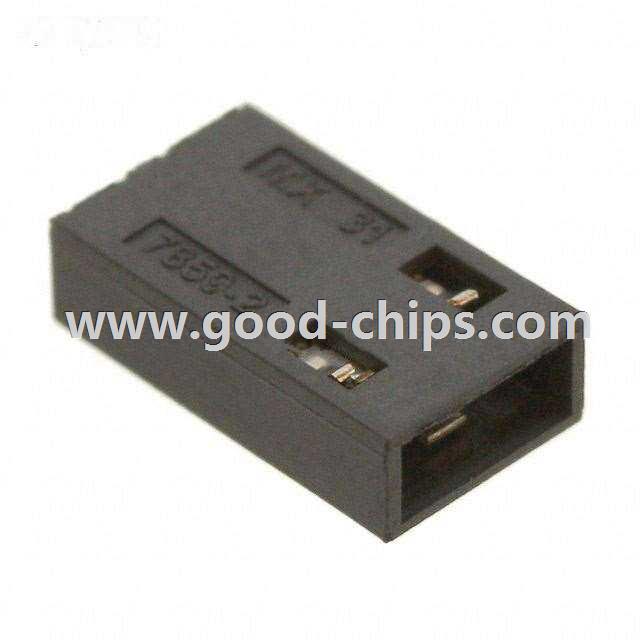

Description: | 2 (1 x 2) Position Shunt Connector Black Open Top 0.100" (2.54mm) Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 15-29-1026 Datasheet |
Internal Part Number | 898-15-29-1026 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Molex RF Connectors | Digi-Key Daily | |
RoHS Information | 15-29-1026 Cert of Compliance | |
3D Model | 15-29-1026.stp | |
Online Catalog | Shunts and Jumpers - Molex | |
Category | Connectors, Interconnects | |
Family | Shunts, Jumpers | |
Manufacturer | Molex Connector Corporation | |
Series | C-Grid® 7859 | |
Packaging | Bulk | |
Part Status | Active | |
Type | Open Top | |
Gender | Female Sockets | |
Number of Positions or Pins (Grid) | 2 (1 x 2) | |
Pitch | 0.100" (2.54mm) | |
Height | 0.347" (8.81mm) | |
Contact Finish | Gold | |
Contact Finish Thickness | 30µin (0.76µm) | |
Color | Black | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 15-29-1026 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
15-29-1026 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 15-29-1026 is new and unused, you can buy 15-29-1026 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 15-29-1026.
