| Manufacturer Part Number: | 15-24-9164 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9184 Pieces |
| Unit Price: | Quote by Email |

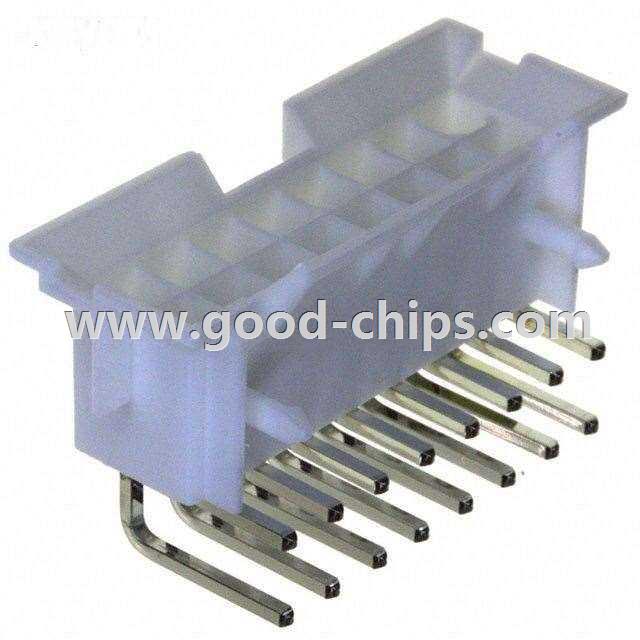

| Description: | 16 Positions Header, Shrouded Connector 0.165" (4.20mm) Through Hole, Right Angle Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 15-24-9164 Datasheet |
| Internal Part Number | 898-15-24-9164 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Connectors | |
| Video File | Mini-Fit BMI Molex - Product of the Quarter - Mini-Fit® Molex RF Connectors | Digi-Key Daily | |
| RoHS Information | 15-24-9164 Cert of Compliance | |
| Featured Product | Mini-Fit® Blind Mate Interface (BMI) Connectors Power Connectors | |
| 3D Model | 15-24-9164.stp 15-24-9164 .pdf | |
| PCN Design/Specification | Mini-FIt,KK Plating 01/Nov/2011 | |
| Online Catalog | Mini-Fit BMI™ Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Molex Connector Corporation | |
| Series | Mini-Fit® BMI™ 42404 | |
| Packaging | Tray | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 16 | |
| Number of Positions Loaded | All | |
| Pitch | 0.165" (4.20mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.165" (4.20mm) | |
| Contact Mating Length | - | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | Board Lock | |
| Contact Finish | Tin | |
| Contact Finish Thickness | 100µin (2.54µm) | |
| Color | Natural | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 15-24-9164 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
15-24-9164 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 15-24-9164 is new and unused, you can buy 15-24-9164 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 15-24-9164.
