| Manufacturer Part Number: | 15-06-0106 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Housings |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

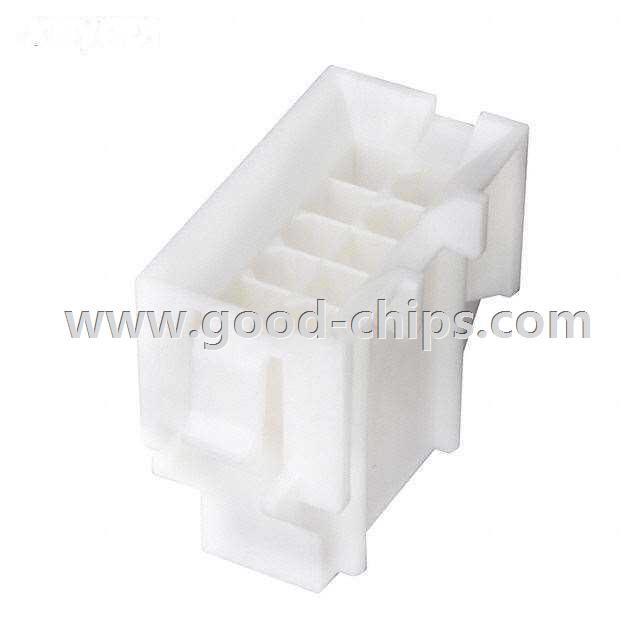

| Description: | 10 Position Rectangular Housing Connector Plug Natural 0.165" (4.20mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 15-06-0106 Datasheet |
| Internal Part Number | 898-15-06-0106 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Moisturizing Nylon Connector Parts | |
| Product Training Modules | Power Connectors | |
| Video File | Mini-Fit BMI | |
| RoHS Information | 15-06-0106 Cert of Compliance | |
| Featured Product | Mini-Fit® Blind Mate Interface (BMI) Connectors Power Connectors | |
| 3D Model | 15-06-0106.stp | |
| Online Catalog | Mini-Fit® BMI™ 42475 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Housings | |
| Manufacturer | Molex Connector Corporation | |
| Series | Mini-Fit® BMI™ 42475 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Plug | |
| Contact Type | Male Pin | |
| Number of Positions | 10 | |
| Pitch | 0.165" (4.20mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.165" (4.20mm) | |
| Mounting Type | Panel Mount, Snap-In | |
| Contact Termination | Crimp | |
| Fastening Type | - | |
| Color | Natural | |
| Features | - | |
| Note | Contacts Not Provided | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 15-06-0106 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
15-06-0106 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 15-06-0106 is new and unused, you can buy 15-06-0106 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 15-06-0106.
