Manufacturer Part Number: | 15-06-0040 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Rectangular Connectors - Housings |
Available Quantity: | 10141 Pieces |
Unit Price: | Quote by Email |

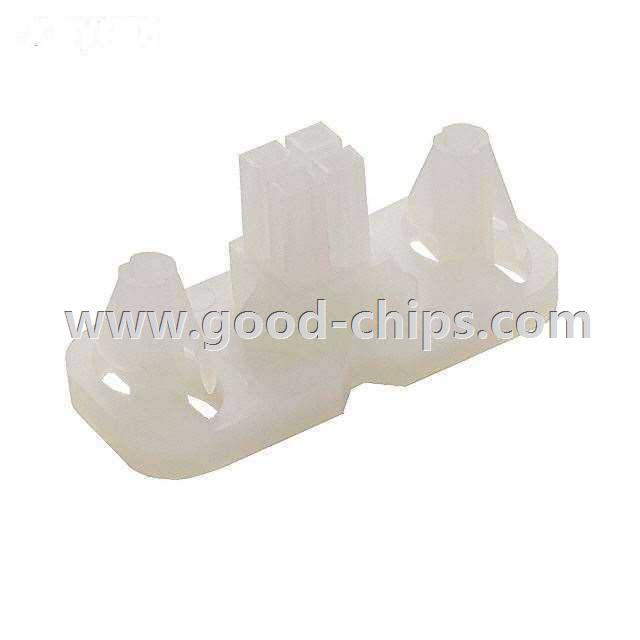

Description: | 4 Position Rectangular Housing Connector Receptacle Natural 0.165" (4.20mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 15-06-0040 Datasheet |
Internal Part Number | 898-15-06-0040 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | Moisturizing Nylon Connector Parts | |
Product Training Modules | Power Connectors | |
Video File | Mini-Fit BMI Molex RF Connectors | Digi-Key Daily | |
RoHS Information | 15-06-0040 Cert of Compliance | |
Featured Product | Mini-Fit® Blind Mate Interface (BMI) Connectors Power Connectors | |
3D Model | 15-06-0040.stp | |
Online Catalog | Mini-Fit® BMI™ 42474 Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Housings | |
Manufacturer | Molex Connector Corporation | |
Series | Mini-Fit® BMI™ 42474 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Receptacle | |
Contact Type | Female Socket | |
Number of Positions | 4 | |
Pitch | 0.165" (4.20mm) | |
Number of Rows | 2 | |
Row Spacing | 0.165" (4.20mm) | |
Mounting Type | Panel Mount | |
Contact Termination | Crimp | |
Fastening Type | - | |
Color | Natural | |
Features | - | |
Note | Contacts Not Provided | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 15-06-0040 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
15-06-0040 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 15-06-0040 is new and unused, you can buy 15-06-0040 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 15-06-0040.
