15-006593

15-006593
Manufacturer Part Number:15-006593
Manufacturer:
Product Category:D-Sub Connectors
Available Quantity:9010 Pieces
Unit Price:Quote by Email

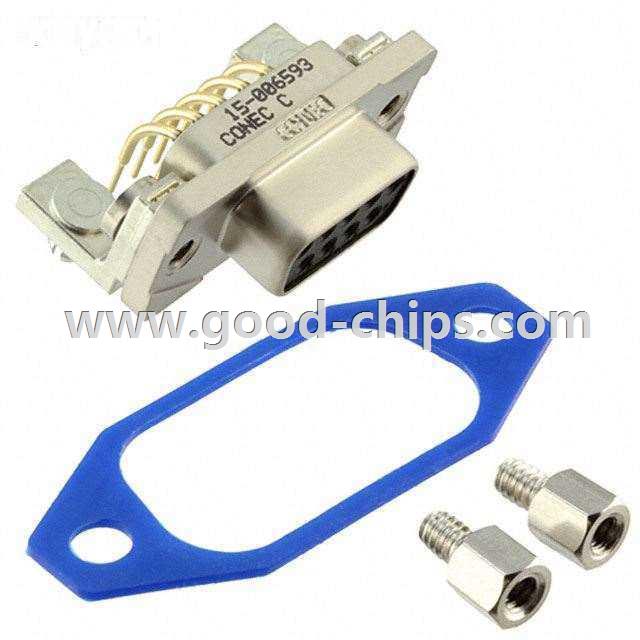

Description:9 Position D-Sub Receptacle, Female Sockets Connector, Panel Mount, Through Hole, Right Angle Solder
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 15-006593 Datasheet
15-006593´s Parameters
Internal Part Number898-15-006593
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Featured ProductSlimCon IP67 D-SUB Connectors
Online Catalog SlimCon Series
CategoryConnectors, Interconnects
FamilyD-Sub Connectors
ManufacturerConec
SeriesSlimCon
PackagingBulk
Part StatusActive
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Number of Positions9
Number of Rows2
Shell Size, Connector Layout1 (DE, E)
Contact TypeSignal
Mounting TypePanel Mount, Through Hole, Right Angle
Flange FeatureBoard Side (4-40); Mating Side, Female Screwlock (4-40)
TerminationSolder
FeaturesBoard Lock, Gasket, Mounting Brackets
Shell Material, FinishZinc Die Cast, Nickel Plated
Contact FinishGold
Contact Finish ThicknessFlash
Ingress ProtectionIP67 - Dust Tight, Waterproof
Operating Temperature-40°C ~ 105°C
Voltage Rating125V
Current Rating5A
Housing MaterialPolybutylene Terephthalate (PBT), Glass Filled
ColorBlack
Standard Package 25
Weight0.001 KG
ApplicationEmail for details
Replacement Part15-006593
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

15-006593 is in stock for immediate shipping now. We are the distributor of Conec all series components. The condition of 15-006593 is new and unused, you can buy 15-006593 Conec with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 15-006593.
