| Manufacturer Part Number: | 15-000763 |
|---|---|
| Manufacturer: | Conec |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9023 Pieces |
| Unit Price: | Quote by Email |

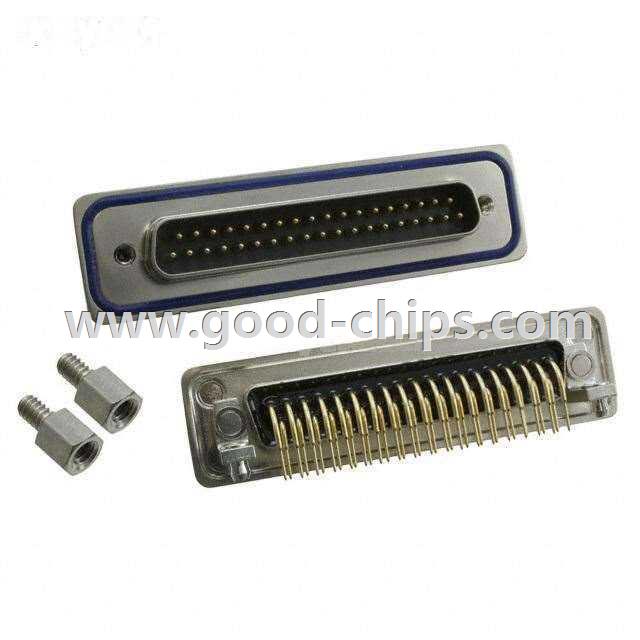

| Description: | 37 Position D-Sub Plug, Male Pins Connector, Panel Mount, Through Hole, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 15-000763 Datasheet |
| Internal Part Number | 898-15-000763 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Solid Body Connectors | |
| RoHS Information | RoHS/Reach Cert of Compliance | |
| Featured Product | Solid Body Connectors | |
| Online Catalog | 15 Series | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Conec | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Style | D-Sub | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 37 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 4 (DC, C) | |
| Contact Type | Signal | |
| Mounting Type | Panel Mount, Through Hole, Right Angle | |
| Flange Feature | Mating Side, Female Screwlock (4-40) | |
| Termination | Solder | |
| Features | Board Lock | |
| Shell Material, Finish | Zinc Die Cast, Nickel Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 8µin (0.20µm) | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Operating Temperature | -25°C ~ 105°C | |
| Voltage Rating | - | |
| Current Rating | 7.5A | |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | |
| Color | Black | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 15-000763 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
15-000763 is in stock for immediate shipping now. We are the distributor of Conec all series components. The condition of 15-000763 is new and unused, you can buy 15-000763 Conec with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 15-000763.
