1470

1470

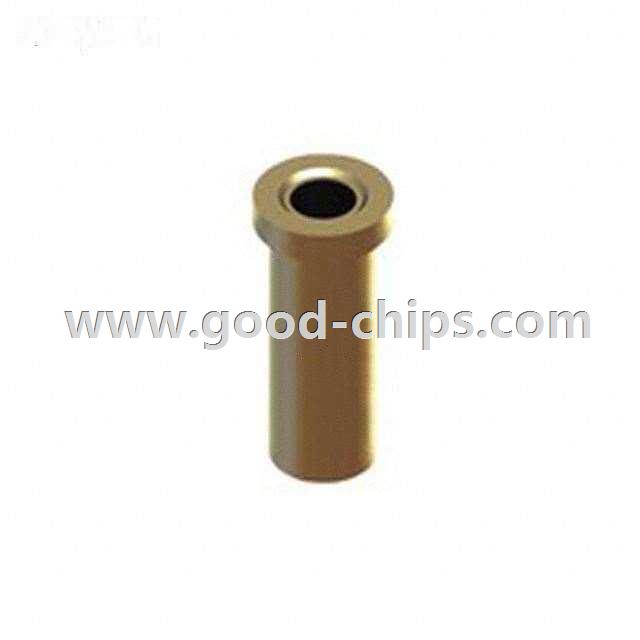

Manufacturer Part Number:1470
Manufacturer:
Product Category:Terminals - PC Pin Receptacles, Socket Connectors
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) No Tail Solder
Lead Free Status / RoHS Status:Lead free / RoHS non-compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 1470 Datasheet
1470´s Parameters
Internal Part Number898-1470
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryConnectors, Interconnects
FamilyTerminals - PC Pin Receptacles, Socket Connectors
ManufacturerKeystone Electronics
Series-
PackagingBulk
Part StatusActive
Tail TypeNo Tail
TerminationSolder
Length - Overall0.161" (4.09mm)
Accepts Pin Diameter0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Mounting Hole Diameter0.057" (1.45mm)
Pin Hole Diameter-
Flange Diameter0.072" (1.83mm)
Tail Diameter-
Socket Depth0.142" (3.61mm)
Contact MaterialBeryllium Copper
Contact FinishGold
Contact Finish Thickness10µin (0.25µm)
Features-
Operating Temperature-
Board Thickness-
Insertion Force-
Standard Package 100
Weight0.001 KG
ApplicationEmail for details
Replacement Part1470
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

1470 is in stock for immediate shipping now. We are the distributor of Keystone Electronics all series components. The condition of 1470 is new and unused, you can buy 1470 Keystone Electronics with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 1470.
