| Manufacturer Part Number: | 14310513101000 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets |
| Available Quantity: | 9301 Pieces |
| Unit Price: | Quote by Email |

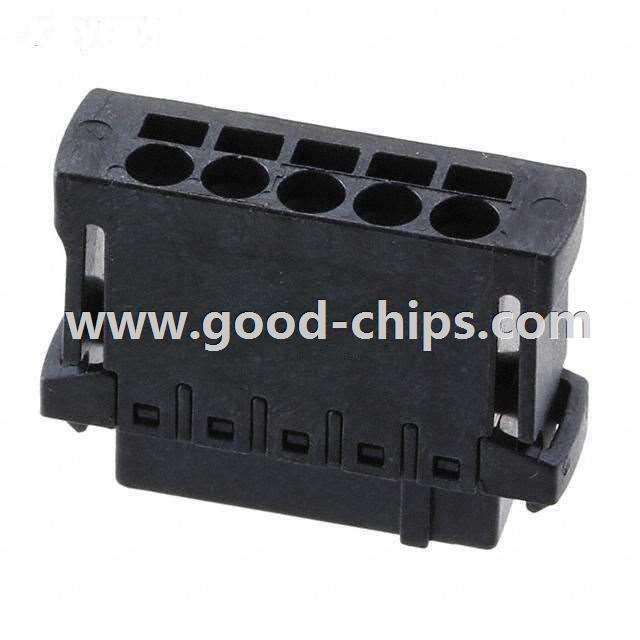

| Description: | 5 Position Terminal Block Plug, Female Sockets 0.100" (2.54mm) 180° Free Hanging (In-Line) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 14310513101000 Datasheet |
| Internal Part Number | 898-14310513101000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | har-flexicon® Connector and Terminal Block Series | |
| Featured Product | har-flexicon®: Pluggable Single Conductor Wiring of I/O Signals | |
| Online Catalog | har-flexicon® Series | |
| Category | Connectors, Interconnects | |
| Family | Terminal Blocks - Headers, Plugs and Sockets | |
| Manufacturer | Harting | |
| Series | har-flexicon® | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Plug, Female Sockets | |
| Number of Positions | 5 | |
| Positions Per Level | 5 | |
| Number of Levels | 1 | |
| Pitch | 0.100" (2.54mm) | |
| Header Orientation | - | |
| Plug Wire Entry | 180° | |
| Termination Style | Screwless - Spring Cage, Tension Clamp | |
| Mounting Type | Free Hanging (In-Line) | |
| Current - IEC | - | |
| Voltage - IEC | - | |
| Current - UL | 6A | |
| Voltage - UL | 160V | |
| Wire Gauge or Range - AWG | 20-26 AWG | |
| Wire Gauge or Range - mm² | 0.14-0.5mm² | |
| Color | Black | |
| Operating Temperature | -40°C ~ 125°C | |
| Contact Mating Finish | Tin | |
| Features | Latch Lock | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 14310513101000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
14310513101000 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 14310513101000 is new and unused, you can buy 14310513101000 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 14310513101000.
