| Manufacturer Part Number: | 1429 |
|---|---|
| Manufacturer: | Adafruit Industries LLC |
| Product Category: | Evaluation Boards - LED Drivers |
| Available Quantity: | 9042 Pieces |
| Unit Price: | Quote by Email |

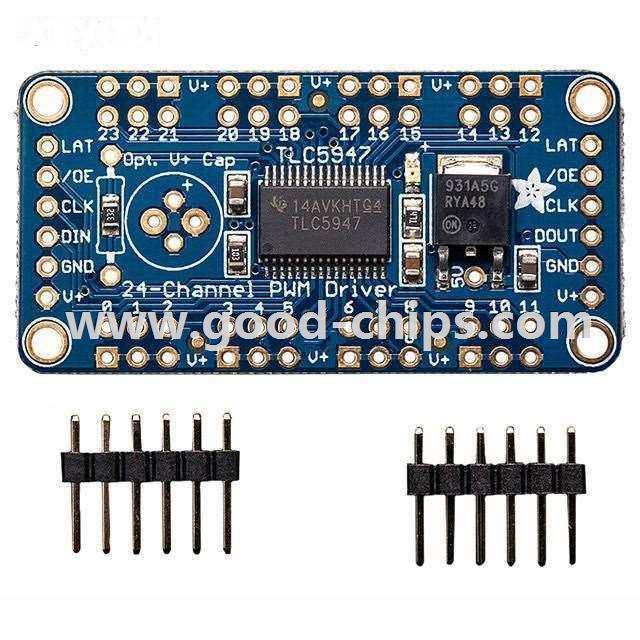

| Description: | TLC5947 24, Non-Isolated Output LED Driver Evaluation Board |
| Lead Free Status / RoHS Status: | Not applicable / Not applicable |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1429 Datasheet |
| Internal Part Number | 898-1429 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector Lighting Product Selector | |
| Online Catalog | Adafruit 24-Channel 12-Bit PWM/Servo Driver SPI Interface | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - LED Drivers | |
| Manufacturer | Adafruit Industries LLC | |
| Series | - | |
| Part Status | Active | |
| Current - Output / Channel | - | |
| Outputs and Type | 24, Non-Isolated | |
| Voltage - Output | - | |
| Features | SPI digital interface | |
| Voltage - Input | 5 V ~ 24 V | |
| Supplied Contents | Board | |
| Utilized IC / Part | TLC5947 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1429 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1429 is in stock for immediate shipping now. We are the distributor of Adafruit Industries LLC all series components. The condition of 1429 is new and unused, you can buy 1429 Adafruit Industries LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1429.
